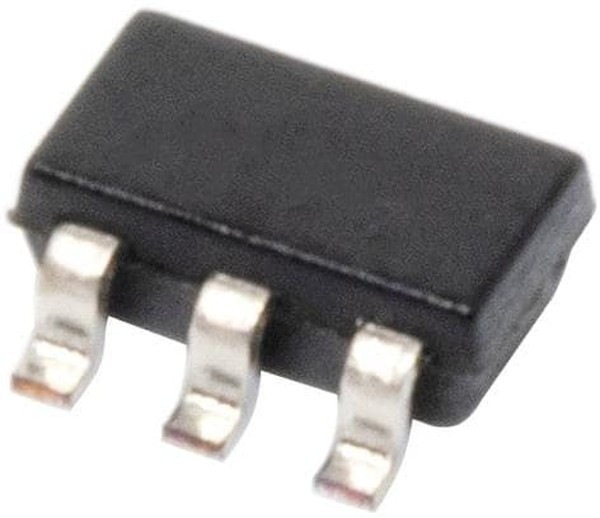

AD8067ARTZ-REEL7, Op Amp Single Precision Amplifier R-R O/P ±12V/24V 5-Pin SOT-23 T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: AD8067ARTZ-REEL7
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)Op Amp Single Precision Amplifier R-R O/P ±12V/24V 5-Pin SOT-23 T/R
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:28:00 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 106 dB |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 6.6 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 200 MHz |
| ib - input bias current: | 5 pA |
| input offset voltage drift (uv/°c) | 15 |
| input voltage range - max: | 2 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Precision Amplifier |
| maximum dual supply voltage: | +/-12 V |
| maximum dual supply voltage (v) | ±12 |
| maximum input bias current (ua) | 0.000005@5V |
| maximum input offset current (ua) | 0.000001@5V |
| maximum input offset voltage (mv) | 1@5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum quiescent current (ma) | 6.7@5V |
| maximum single supply voltage (v) | 24 |
| minimum cmrr (db) | 81 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage: | +/-2.5 V |
| minimum dual supply voltage (v) | ±2.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 87 |
| minimum single supply voltage (v) | 5 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 6.5 mA |
| operating supply voltage: | 5 V to 24 V |
| output current per channel: | 30 mA |
| output type: | Rail-to-Rail |
| package/case: | SOT-23-5 |
| packaging | Tape and Reel |
| партномер | 8001064854 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | BiFET |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | -109 dB |
| rail to rail | Rail to Rail Output |
| series: | AD8067 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 640 V/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supplier temperature grade | Industrial |
| supply voltage - max: | 24 V, +/-12 V |
| supply voltage - min: | 5 V, +/-2.5 V |
| type | PRECISION AMPLIFIER |
| type: | Voltage Feedback Amplifier |
| typical dual supply voltage (v) | ±3|±5|±9 |
| typical gain bandwidth product (mhz) | 200 |
| typical input bias current (ua) | 0.0000005@5V |
| typical input noise voltage density (nv/rthz) | 6.6@5V |
| typical noninverting input current noise density (pa/rthz) | 0.0006@5V |
| typical output current (ma) | 22@5V |
| typical settling time (ns) | 25 |
| typical slew rate (v/us) | 490@5V |
| typical voltage gain (db) | 117 |
| вес, г | 0.454 |
| voltage gain db: | 117 dB |
| vos - input offset voltage: | 200 uV |
