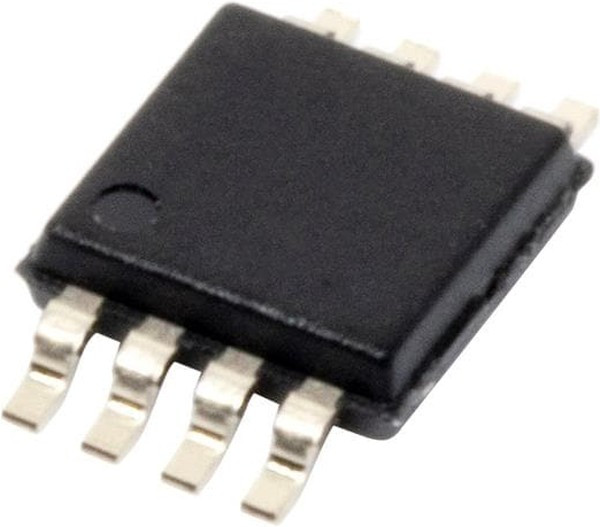

AD8062ARMZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементThe AD8061/AD8062/AD8063 are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost. They have a bandwidth and slew rate
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:55:58 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | Voltage Feedback Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 80 dB |
| development kit: | AD8062ARM-EBZ |
| eccn (us) | ear99 |
| en - input voltage noise density: | 8.5 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gbp - gain bandwidth product: | 90 MHz |
| ib - input bias current: | 9 uA |
| in - input noise current density: | 1.2 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 9@5V |
| maximum input bias current - (ua) | 9@5V |
| maximum input offset current (ua) | 4.5@5V |
| maximum input offset current - (ua) | 4.5@5V |
| maximum input offset voltage (mv) | 6@5V |
| maximum input offset voltage - (mv) | 6@5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum power dissipation (mw) | 600 |
| maximum power dissipation - (mw) | 600 |
| maximum quiescent current (ma) | 19@5V |
| maximum single supply voltage (v) | 8 |
| military | No |
| minimum cmrr (db) | 62 |
| minimum cmrr range (db) | 60 to 65 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 72 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 19 mA |
| operating supply voltage: | 2.7 V to 8 V |
| operating temperature - (??c) | -40~85 |
| output current per channel: | 50 mA |
| output type: | Rail-to-Rail |
| package / case: | MSOP-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8002987449 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation: | 600 mW |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| process technology | Bipolar |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| rail to rail | Rail to Rail Output |
| series: | AD8062 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 650 V/us |
| standard package name | MSOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Industrial |
| supply type: | Dual |
| supply voltage - max: | 8 V |
| supply voltage - min: | 2.7 V |
| type | General Purpose Amplifier |
| type: | Voltage Feedback Amplifier |
| typical gain bandwidth product (mhz) | 90 |
| typical gain bandwidth product - (mhz) | 90 |
| typical input noise voltage density (nv/rthz) | 8.5@5V |
| typical noninverting input current noise density (pa/rthz) | 1.2@5V |
| typical output current (ma) | 50@5V |
| typical settling time (ns) | 35 |
| typical slew rate (v/us) | 650@5V |
| typical slew rate - (v/us) | 650@5V |
| typical voltage gain (db) | 90 |
| вес, г | 3.46 |
| voltage gain db: | 90 dB |
| vos - input offset voltage: | 1 mV |
