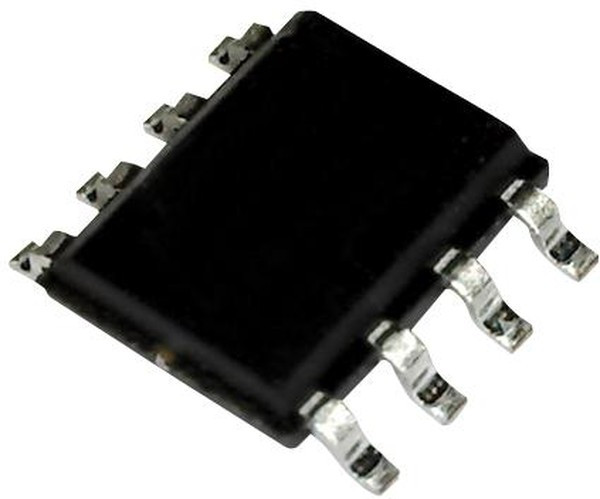

AD8055ARZ, Экономичный усилитель с отрицательной обратной связью, 300МГц, 5мА, + 5В [SO-8]

AD8055 is a single channel voltage feedback amplifier. It offer bandwidth and slew rate typically found in current feedback amplifiers. This amplifier is easy to use and available at a very low cost. It provide excellent overall performance for video applications. It is ideal for portable and battery-powered applications where size and power are critical. This amplifier is widely used in application such as imaging, photodiode preamps, video line drivers, differential line drivers, professional cameras video switchers, special effects, A-to-D drivers, active filters etc. • Easy-to-use voltage feedback architecture• Slew rate is 1400V/µs• -3dB bandwidth is 300MHz typ• Settling time to 0.1% is 20ns typ• Total harmonic distortion is -72dBc• Gain flatness is 0.1dB to 40MHz, 0.01% differential gain error• 0.02° differential phase error, operating voltage is ±5.0V typ• Drives 4 video loads (37.5V) with 0.02% differential gain and 0.1° differential phase• High output drive current is over 60mA• Operating temperature range is -40°C to +125°C, packaging style is 8-lead SOIC• N
