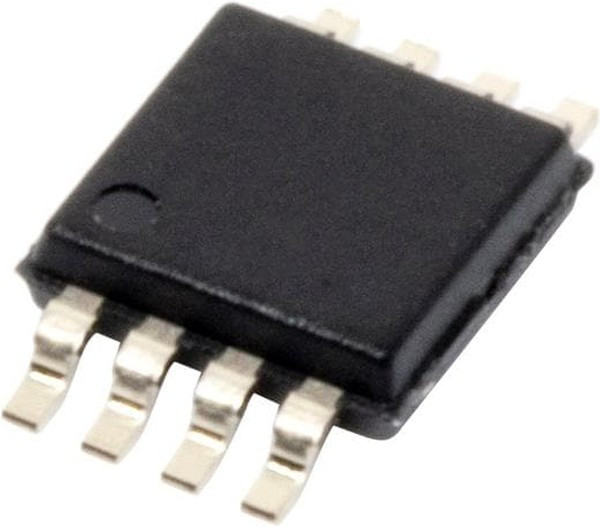

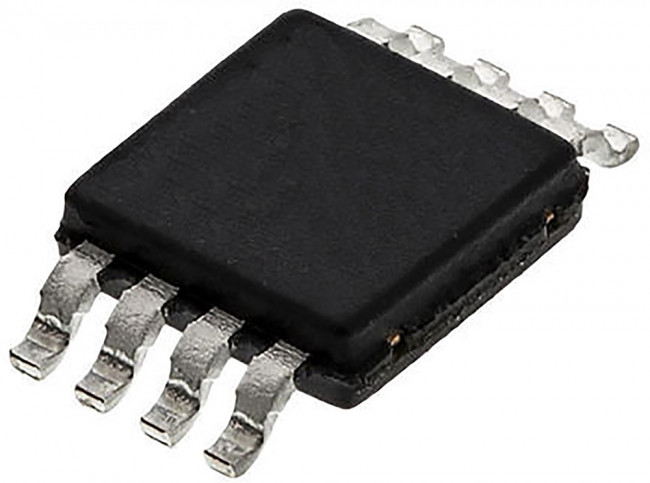

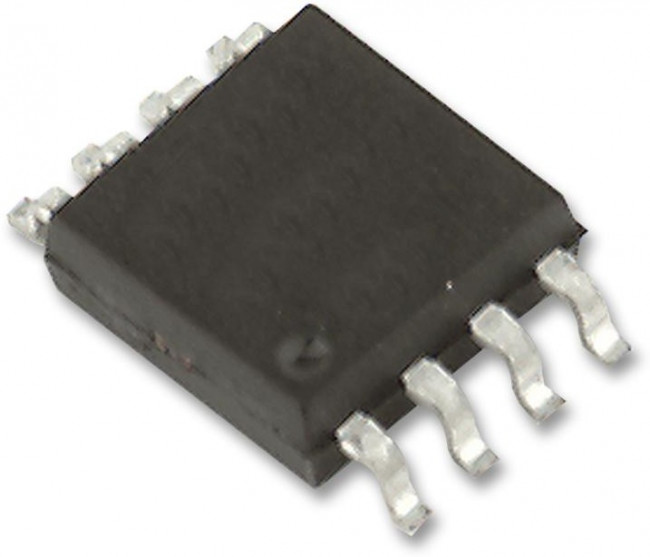

AD8052ARMZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Электроэлемент; Amplifier Case Style:Msop; No. Of Pins:8Pins; Operating Temperature Min:-40°C Rohs Compliant: Yes |Analog Devices AD8052ARMZ
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:23:24 |
| Бренд | Analog Devices |
| Вес и габариты | |
| 3 db bandwidth: | 110 MHz |
| amplifier type | Voltage Feedback |
| amplifier type: | Voltage Feedback |
| base product number | AD8052 -> |
| cmrr - common mode rejection ratio: | 88 dB |
| common mode rejection ratio | 72(dB) |
| current - input bias | 1.4ВµA |
| current - output / channel | 45mA |
| current - supply | 4.8mA (x2 Channels) |
| development kit: | AD8052ARM-EBZ |
| диапазон напряжения питания | 3В до 12В |
| dual supply voltage (max) | ±6(V) |
| dual supply voltage (min) | ±1.5(V) |
| dual supply voltage (typ) | ±5(V) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 16 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gain bandwidth product | 80MHz |
| hts | 8542.39.00.01 |
| htsus | 8542.33.0001 |
| ib - input bias current: | 3.25 uA |
| input bias current | 2500(nA) |
| input offset voltage | 10(mV) |
| категория | Электронные компоненты/Микросхемы |
| количество усилителей | 2 Усилителя |
| количество выводов | 8вывод(-ов) |
| lead shape | Gull-wing |
| максимальная рабочая температура | 125 C |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage: | +/-6 V |
| maximum dual supply voltage (v) | ±6 |
| maximum input bias current (ua) | 2.5@5V |
| maximum input offset current | 0.75@5V |
| maximum input offset current (ua) | 0.75@5V |
| maximum input offset voltage (mv) | 10@5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 10@5V |
| maximum single supply voltage (v) | 12 |
| минимальная рабочая температура | -40 C |
| minimum cmrr (db) | 72 |
| minimum cmrr range (db) | 71 to 75 |
| minimum dual supply voltage: | +/-1.5 V |
| minimum dual supply voltage (v) | ±1.5 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 3 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| number of elements | 2 |
| operating supply current: | 4.4 mA |
| operating supply voltage: | 3 V to 12 V |
| operating temperature | -40В°C ~ 125В°C |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output current per channel: | 45 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package | Tube |
| package / case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| package / case: | MSOP-8 |
| package height | 0.85 |
| package length | 3 |
| package type | MSOP |
| package width | 3 |
| packaging | Rail/Tube |
| packaging: | Tube |
| партномер | 8002980638 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| полоса пропускания | 110МГц |
| power supply rejection ratio | 70(dB) |
| power supply requirement | Single/Dual |
| power supply type | Single|Dual |
| process technology | BiCOM |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | Rail to Rail Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | AD8052 |
| settling time | 0.05(us) |
| settling time: | 50 ns |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 12(V) |
| single supply voltage (min) | 3(V) |
| single supply voltage (typ) | 5(V) |
| скорость нарастания | 170В/мкс |
| slew rate | 145(V/us) |
| sr - slew rate: | 145 V/us |
| standard package name | MSOP |
| стиль корпуса усилителя | MSOP |
| subcategory: | Amplifier ICs |
| supplier device package | 8-MSOP |
| supplier package | MSOP |
| supplier temperature grade | Extended |
| supply type: | Single, Dual |
| supply voltage - max: | 12 V |
| supply voltage - min: | 3 V |
| technology | BiCOM |
| topology: | Voltage Feedback |
| type | High Speed Amplifier |
| typical dual supply voltage | ±5V |
| typical dual supply voltage (v) | ±5 |
| typical gain bandwidth product (mhz) | 80 |
| typical input noise voltage density (nv/rthz) | 16@5V |
| typical input voltage noise density | 16nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.85@5V |
| typical output current (ma) | 45@5V |
| typical settling time (ns) | 50 |
| typical single supply voltage | 5 V |
| typical single supply voltage (v) | 5 |
| typical slew rate | 145V/µs |
| typical slew rate (v/us) | 145@5V |
| typical voltage gain | 98 dB |
| typical voltage gain (db) | 98 |
| unity gain bandwidth product | 80 |
| уровень чувствительности к влажности (msl) | MSL 1-Безлимитный |
| вес, г | 0.06 |
| voltage gain db: | 98 dB |
| voltage gain in db | 98(dB) |
| voltage - input offset | 1.7mV |
| voltage - supply, single/dual (в±) | 3V ~ 12V, В±1.5V ~ 6V |
| vos - input offset voltage: | 1.7 mV |
| width | 3mm |
| -3db bandwidth | 110MHz |
