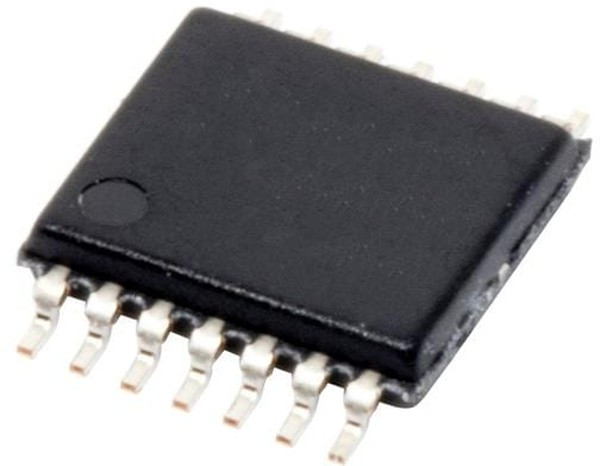

AD8040ARUZ-REEL7, Операционный усилитель, 4 Усилителя, 125 МГц, 63 В/мкс, 2.7В до 12В, TSSOP, 14 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУAD8040 is a quad channel, rail-to-rail input and output high speed amplifier. It exhibits true single-supply operation with rail-to-rail input and output performance for supply voltages ranging from 2.7V to 12V. The input voltage range extends 200mV beyond each rail without phase reversal. The dynamic range of the output extends to within 40mV of each rail. The versatility of the device allows the user to operate the amplifier on a wide range of supplies while consuming less than 6.5mW of power. These features extend the operation time in applications ranging from battery-powered systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation. It is widely used in application such as automotive safety and vision systems, battery-powered instrumentation, filters, A-to-D drivers, buffering etc. • Supply current/amplifier is 1.3mA• -3dB bandwidth (G = +1) is 125MHz typ• Slew rate is 60V/µs• Settling time to (0.1%) is 80ns• Offset voltage is 6mV max at (NPN active, VCM = 4.5V)• Low input bias current is +0.7µA to -1.5µA• Operating temperature range is -40°C to +125°C• Packaging style is 14-lead TSSOP
