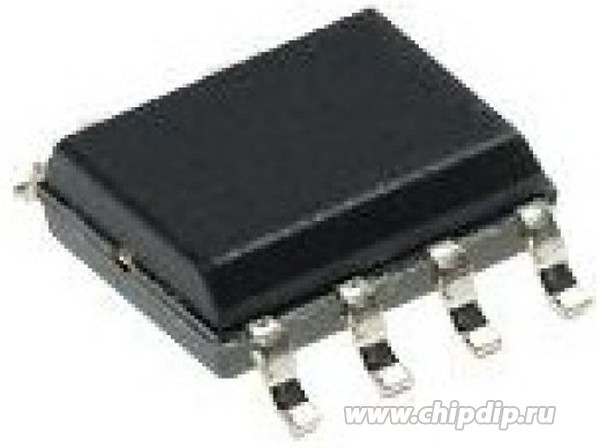

AD8034ARZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps Описание IC: operational amplifier; 80MHz; Ch: 2; SO8; ±2.5?12VDC,5?24VDC Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
SMD
Кол-во каналов
2
Мин.напряжение питания, В
5
Макс.напряжение питания, В
24
Корпус
SO8
Особенности
rail-to-rail output
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:26:28 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | Voltage Feedback |
| amplifier type: | Voltage Feedback Amplifier |
| base product number | AD8034 -> |
| cmrr - common mode rejection ratio | 100 dB |
| cmrr - common mode rejection ratio: | 100 dB |
| current - input bias | 2pA |
| current - output / channel | 60mA |
| current - supply | 3.3mA (x2 Channels) |
| development kit: | AD8034AR-EBZ |
| dual supply voltage | +/-3 V, +/-5 V, +/-9 V |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| eccn | EAR99 |
| en - input voltage noise density | 11 nV/sqrt Hz |
| en - input voltage noise density: | 11 nV/sqrt Hz |
| factory pack quantity | 1000 |
| factory pack quantity: factory pack quantity: | 98 |
| gbp - gain bandwidth product | 40 MHz |
| gbp - gain bandwidth product: | 45 MHz |
| height | 1.5 mm(Max) |
| htsus | 8542.33.0001 |
| ib - input bias current | 11 pA |
| ib - input bias current: | 11 pA |
| in - input noise current density | 0.0007 pA/sqrt Hz |
| in - input noise current density: | 0.0007 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| length | 5 mm(Max) |
| manufacturer | Analog Devices Inc. |
| manufacturer: | Analog Devices Inc. |
| maximum dual supply voltage | +/-12 V |
| maximum dual supply voltage: | +/-12 V |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum dual supply voltage | +/-2.5 V |
| minimum dual supply voltage: | +/-2.5 V |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 2 Channel |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| operating supply current | 7 mA |
| operating supply current: | 7 mA |
| operating supply voltage | 5 V to 24 V |
| operating supply voltage: | 5 V to 24 V |
| operating temperature | -40В°C ~ 85В°C |
| output current per channel | 5 mA |
| output current per channel: | 5 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package | Tube |
| package / case | 8-SOIC (0.154"", 3.90mm Width) |
| package / case: | SOIC-8 |
| package type | SOIC |
| packaging | Reel |
| packaging: | Tube |
| партномер | 8005867594 |
| pin count | 8 |
| power supply type | Dual, Single |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 100 dB |
| psrr - power supply rejection ratio: | 100 dB |
| rail to rail | Rail to Rail Output |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | FastFETв„ў -> |
| series: | AD8034 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| slew rate | 80V/Вµs |
| sr - slew rate | 70 V/us |
| sr - slew rate: | 80 V/us |
| subcategory: | Amplifier ICs |
| supplier device package | 8-SOIC |
| supply type | Single, Dual |
| supply type: | Dual |
| supply voltage - max | 24 V |
| supply voltage - max: | 24 V, +/-12 V |
| supply voltage - min | 5 V |
| supply voltage - min: | 5 V, +/-2.5 V |
| technology | FET |
| technology: | FET |
| type | Voltage Feedback Amplifier |
| type: | Voltage Feedback Amplifier |
| typical dual supply voltage | ±3 V, ±5 V, ±9 V |
| typical input voltage noise density | 11nV/√Hz |
| typical single supply voltage | 6 → 18 V |
| typical slew rate | 70V/µs |
| typical voltage gain | 92 dB |
| unit weight | 0.019048 oz |
| voltage gain db | 92 dB |
| voltage gain db: | 92 dB |
| voltage - input offset | 1mV |
| voltage - supply, single/dual (в±) | 5V ~ 24V, В±2.5V ~ 12V |
| vos - input offset voltage | 1 mV |
| vos - input offset voltage: | 1 mV |
| width | 4 mm(Max) |
| -3db bandwidth | 80MHz |
