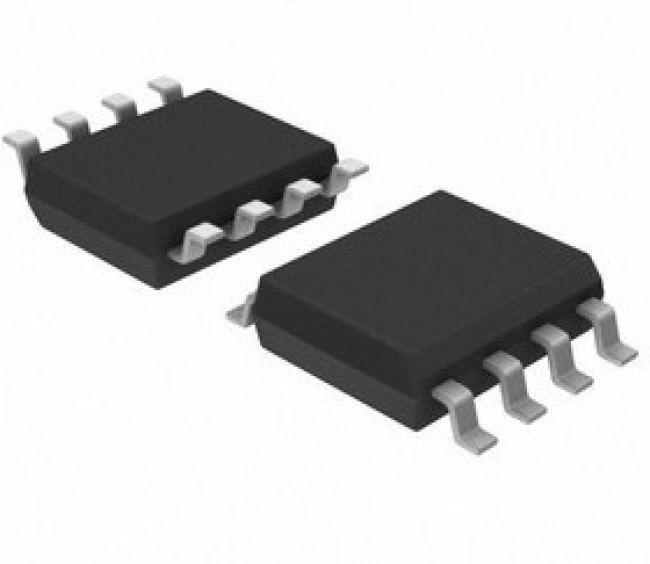

AD8030ARZ, High Speed Operational Amplifiers Low Power R-R I/O Amp
Оставить отзыв
В избранноеВ сравнение
Артикул: AD8030ARZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\High Speed Operational AmplifiersAmplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:18:01 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | Voltage Feedback |
| automotive | No |
| cmrr - common mode rejection ratio: | 90 dB |
| common mode rejection ratio | 80(dB) |
| development kit: | AD8030AR-EBZ |
| dual supply voltage (max) | ±6(V) |
| dual supply voltage (min) | ±1.35(V) |
| dual supply voltage (typ) | ±3/±5(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 16.5 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 98 |
| gbp - gain bandwidth product: | 45 MHz |
| ib - input bias current: | 1.3 uA |
| input bias current | 2800(nA) |
| input offset voltage | 6(mV) |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage: | +/-6 V |
| maximum dual supply voltage (v) | ±6 |
| maximum input bias current (ua) | 2.8 5V |
| maximum input offset current | 0.9@5V |
| maximum input offset current (ua) | 0.9 5V |
| maximum input offset voltage (mv) | 6 5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 3 5V |
| maximum single supply voltage (v) | 12 |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage: | +/-1.35 V |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 73 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of elements | 2 |
| operating supply current: | 170 mA |
| operating supply voltage: | 2.7 V to 12 V |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output current per channel: | 1.3 mA |
| output type: | Rail-to-Rail |
| package / case: | SOIC-8 |
| package type | SOIC N |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004967023 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply rejection ratio | 73(dB) |
| power supply requirement | Single/Dual |
| power supply type | Single|Dual |
| ppap | No |
| process technology | Bipolar |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| rad hardened | No |
| rail to rail | Rail to Rail Input/Output |
| series: | AD8030 |
| settling time | 0.082(us) |
| settling time: | 80 ns |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 12(V) |
| single supply voltage (min) | 2.7(V) |
| single supply voltage (typ) | 3/5/9(V) |
| slew rate | 60(V/us) |
| sr - slew rate: | 60 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | SOIC N |
| supplier temperature grade | Extended Industrial |
| supply type: | Single, Dual |
| supply voltage - max: | 12 V |
| supply voltage - min: | 2.7 V |
| technology | Bipolar |
| topology: | Voltage Feedback |
| type | High Speed Amplifier |
| typical dual supply voltage (v) | ±3|±5 |
| typical gain bandwidth product (mhz) | 45 |
| typical input noise voltage density (nv/rthz) | 16.5 5V |
| typical noninverting input current noise density (pa/rthz) | 1.1 5V |
| typical settling time (ns) | 82 |
| typical single supply voltage (v) | 3|5|9 |
| typical slew rate (v/us) | 60 5V |
| typical voltage gain (db) | 74 |
| unity gain bandwidth product | 45 |
| вес, г | 0.174 |
| voltage gain db: | 74 dB |
| voltage gain in db | 74(dB) |
| vos - input offset voltage: | 1.6 mV |
