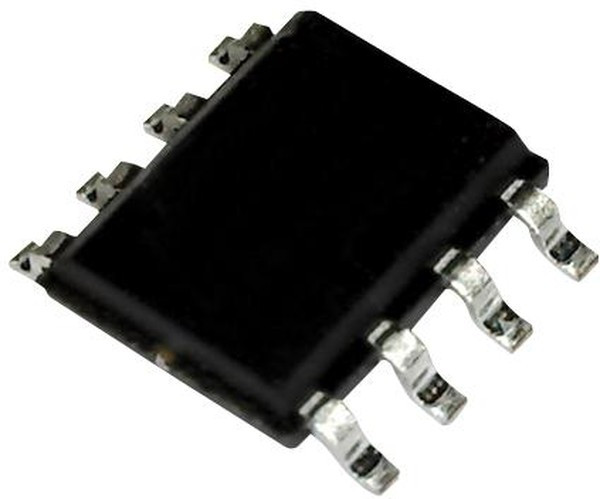

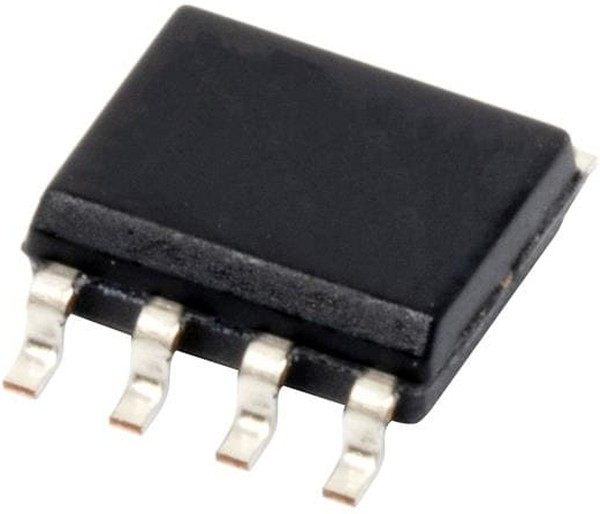

AD8029ARZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Усилитель общего назначения 1 схема Rail-to-Rail 8-SOIC
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:58:47 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | Voltage Feedback |
| base product number | AD8029 -> |
| cmrr - common mode rejection ratio: | 90 dB |
| common mode rejection ratio | 80(dB) |
| current - input bias | 1.7ВµA |
| current - output / channel | 170mA |
| current - supply | 1.4mA |
| development kit: | AD8029AR-EBZ |
| диапазон напряжения питания | 2.7В до 12В |
| dual supply voltage (max) | ±6(V) |
| dual supply voltage (min) | ±1.35(V) |
| dual supply voltage (typ) | ±3/±5(V) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 16.5 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 98 |
| gbp - gain bandwidth product: | 45 MHz |
| hts | 8542.33.00.01 |
| htsus | 8542.33.0001 |
| ib - input bias current: | 1.3 uA |
| input bias current | 2800(nA) |
| input offset voltage | 6(mV) |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| количество усилителей | 1 Усилитель |
| количество выводов | 8вывод(-ов) |
| lead shape | Gull-wing |
| максимальная рабочая температура | 125 C |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage: | +/-6 V |
| maximum dual supply voltage (v) | ±6 |
| maximum input bias current (ua) | 2.8@5V |
| maximum input offset current | 0.9@5V |
| maximum input offset current (ua) | 0.9@5V |
| maximum input offset voltage (mv) | 6@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 1.5@5V |
| maximum single supply voltage (v) | 12 |
| минимальная рабочая температура | -40 C |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage: | +/-1.35 V |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 73 |
| minimum single supply voltage (v) | 02.07.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| number of elements | 1 |
| operating supply current: | 170 mA |
| operating supply voltage: | 2.7 V to 12 V |
| operating temperature | -40В°C ~ 125В°C |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output current per channel: | 1.3 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package | Tube |
| package / case | 8-SOIC (0.154"", 3.90mm Width) |
| package / case: | SOIC-8 |
| package height | 1.5(Max) |
| package length | 5(Max) |
| package type | SOIC N |
| package width | 4(Max) |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8024115345 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| полоса пропускания | 125МГц |
| power supply rejection ratio | 73(dB) |
| power supply requirement | Single/Dual |
| power supply type | Single|Dual |
| process technology | Bipolar |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| rad hardened | No |
| rail to rail | Rail to Rail Input/Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | AD8029 |
| settling time | 0.082(us) |
| settling time: | 80 ns |
| shutdown: | Shutdown |
| shut down feature | Yes |
| shut down support | Yes |
| single supply voltage (max) | 12(V) |
| single supply voltage (min) | 2.7(V) |
| single supply voltage (typ) | 3/5/9(V) |
| скорость нарастания | 63В/мкс |
| slew rate | 63V/Вµs |
| sr - slew rate: | 60 V/us |
| standard package name | SOP |
| стиль корпуса усилителя | NSOIC |
| subcategory: | Amplifier ICs |
| supplier device package | 8-SOIC |
| supplier package | SOIC N |
| supplier temperature grade | Extended Industrial |
| supply type: | Single, Dual |
| supply voltage - max: | 12 V |
| supply voltage - min: | 2.7 V |
| technology | Bipolar |
| topology: | Voltage Feedback |
| type | High Speed Amplifier |
| typical dual supply voltage (v) | ±3|±5 |
| typical gain bandwidth product (mhz) | 45 |
| typical input noise voltage density (nv/rthz) | 16.5@5V |
| typical noninverting input current noise density (pa/rthz) | 1.1@5V |
| typical settling time (ns) | 82 |
| typical single supply voltage (v) | 3|5|9 |
| typical slew rate (v/us) | 60@5V |
| typical voltage gain (db) | 74 |
| unity gain bandwidth product | 45 |
| уровень чувствительности к влажности (msl) | MSL 1-Безлимитный |
| voltage gain db: | 74 dB |
| voltage gain in db | 74(dB) |
| voltage - input offset | 2mV |
| voltage - supply, single/dual (в±) | 2.7V ~ 12V, В±1.35V ~ 6V |
| vos - input offset voltage: | 1.6 mV |
| -3db bandwidth | 125MHz |
