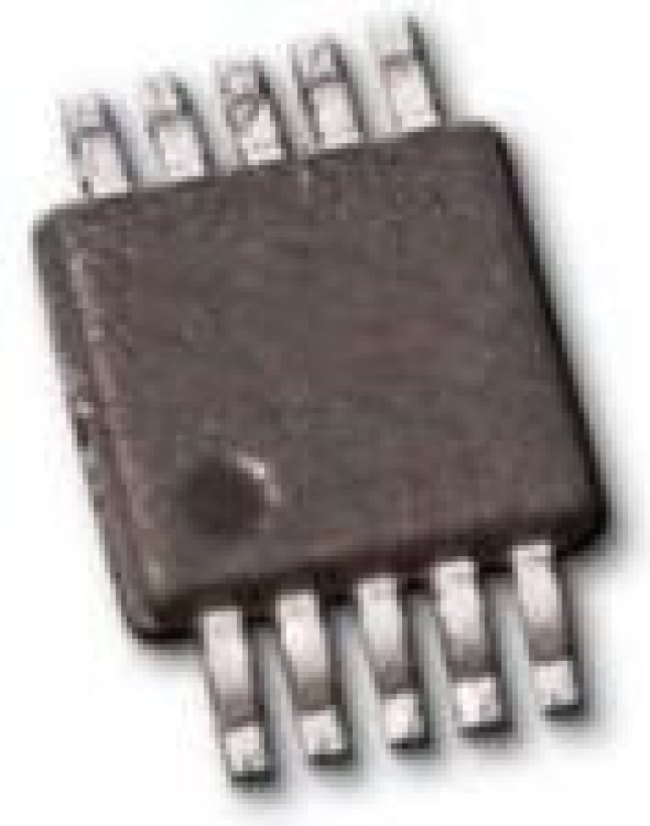

AD8028ARMZ-REEL7
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:58:44 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | Voltage Feedback |
| automotive | No |
| cmrr - common mode rejection ratio: | 110 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 4.3 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 1000 |
| gbp - gain bandwidth product: | 190 MHz |
| ib - input bias current: | 6 uA |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage: | +/-6 V |
| maximum dual supply voltage (v) | ±6 |
| maximum input bias current (ua) | 6 5V |
| maximum input offset current (ua) | 0.9 5V |
| maximum input offset voltage (mv) | 0.9 5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 17 5V |
| maximum single supply voltage (v) | 12 |
| minimum cmrr (db) | 90 |
| minimum cmrr range (db) | 90 to 95 |
| minimum dual supply voltage: | +/-1.35 V |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 90 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 120 mA |
| operating supply voltage: | 2.7 V to 12 V |
| output current per channel: | 6.5 mA |
| output type: | Rail-to-Rail |
| package / case: | MSOP-10 |
| packaging | Tape and Reel |
| партномер | 8016169829 |
| part status | active |
| pcb changed | 10 |
| pin count | 10 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | BiCOM |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 110 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | AD8028 |
| settling time: | 35 ns |
| shutdown: | Shutdown |
| shut down support | Yes |
| sr - slew rate: | 100 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Extended |
| supply type: | Single, Dual |
| supply voltage - max: | 12 V |
| supply voltage - min: | 2.7 V |
| topology: | Voltage Feedback |
| type | High Speed Amplifier |
| typical dual supply voltage (v) | ±3|±5 |
| typical gain bandwidth product (mhz) | 190 |
| typical input bias current (ua) | 4 5V |
| typical input noise voltage density (nv/rthz) | 4.3 5V |
| typical noninverting input current noise density (pa/rthz) | 1.6 5V |
| typical settling time (ns) | 40 |
| typical single supply voltage (v) | 3|5|9 |
| typical slew rate (v/us) | 100 5V |
| typical voltage gain (db) | 105 |
| voltage gain db: | 110 dB |
| vos - input offset voltage: | 200 uV |
