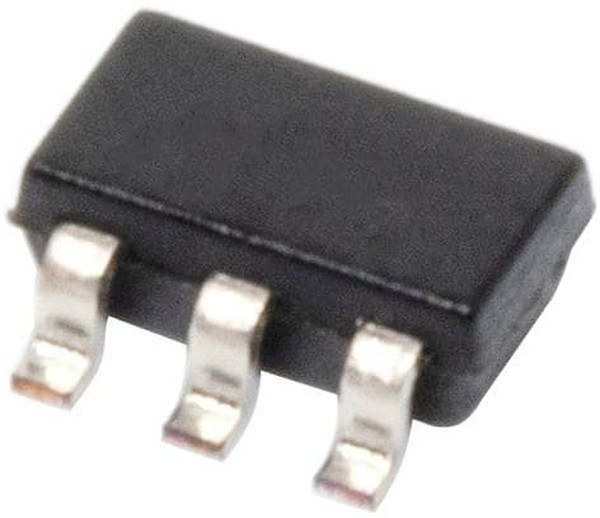

Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsЦепь усилителя обратной связи по напряжению 1 Rail-to-Rail SOT-23-6
Информация о производителе | |
Производитель | Analog Devices |
Основные | |
Дата загрузки | 05.05.2024 |
Время загрузки | 23:26:49 |
Бренд | Analog Devices |
Вес и габариты | |
amplifier type | Voltage Feedback |
amplifier type: | Voltage Feedback |
automotive | No |
base product number | AD8027 -> |
cmrr - common mode rejection ratio: | 110 dB |
current - input bias | 4ВµA |
current - output / channel | 120mA |
current - supply | 6.5mA |
development kit: | EVAL-CN0332-PMDZ |
eccn | EAR99 |
eccn (us) | EAR99 |
en - input voltage noise density: | 4.3 nV/sqrt Hz |
eu rohs | Compliant |
factory pack quantity: factory pack quantity: | 250 |
gbp - gain bandwidth product: | 190 MHz |
Высота | 1.15 мм |
htsus | 8542.33.0001 |
ib - input bias current: | 6 uA |
категория | Электронные компоненты/Микросхемы |
lead shape | Gull-wing |
manufacturer: | Analog Devices Inc. |
manufacturer type | High Speed Amplifier |
maximum dual supply voltage (v) | ±6 |
maximum input bias current (ua) | 6 5V |
maximum input offset current (ua) | 0.9 5V |
maximum input offset voltage (mv) | 0.9 5V |
maximum operating temperature: | +125 C |
maximum operating temperature (°c) | 125 |
maximum quiescent current (ma) | 8.5 5V |
maximum single supply voltage (v) | 12 |
minimum cmrr (db) | 90 |
minimum cmrr range (db) | 90 to 95 |
minimum dual supply voltage (v) | ±1.35 |
minimum operating temperature: | -40 C |
minimum operating temperature (°c) | -40 |
minimum psrr (db) | 90 |
minimum single supply voltage (v) | 02.07.2024 |
moisture sensitivity level (msl) | 1 (Unlimited) |
mounting | Surface Mount |
mounting style: | SMD/SMT |
mounting type | Surface Mount |
number of channels: | 1 Channel |
number of channels per chip | 1 |
number of circuits | 1 |
operating supply current: | 120 mA |
operating supply voltage: | 2.7 V to 12 V |
operating temperature | -40В°C ~ 125В°C |
output current per channel: | 6.5 mA |
output type | Rail-to-Rail |
package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
package / case | SOT-23-6 |
package / case: | SOT-23-6 |
packaging | Tape and Reel |
партномер | 8007271136 |
part status | Active |
pcb changed | 6 |
pin count | 6 |
power supply type | Single|Dual |
ppap | No |
process technology | BiCOM |
product: | Operational Amplifiers |
product category: | High Speed Operational Amplifiers |
product type: | Op Amps-High Speed Operational Amplifiers |
psrr - power supply rejection ratio: | 107 dB |
rail to rail | Rail to Rail Input/Output |
reach status | REACH Unaffected |
rohs status | ROHS3 Compliant |
series: | AD8027 |
settling time: | 35 ns |
shut down support | Yes |
slew rate | 100V/Вµs |
sr - slew rate: | 100 V/us |
standard package name | SOT-23 |
subcategory: | Amplifier ICs |
supplier device package | SOT-23-6 |
supplier package | SOT-23 |
supplier temperature grade | Extended |
supply voltage - max: | 12 V |
supply voltage - min: | 2.7 V |
topology: | Voltage Feedback |
type | High Speed Amplifier |
typical dual supply voltage (v) | ±3|±5 |
typical gain bandwidth product (mhz) | 190 |
typical input bias current (ua) | 4 5V |
typical input noise voltage density (nv/rthz) | 4.3 5V |
typical noninverting input current noise density (pa/rthz) | 1.6 5V |
typical settling time (ns) | 40 |
typical single supply voltage (v) | 3|9|5 |
typical slew rate (v/us) | 100 5V |
typical voltage gain (db) | 105 |
вес, г | 2 |
voltage gain db: | 110 dB |
voltage - input offset | 200ВµV |
voltage - supply, single/dual (в±) | 2.7V ~ 12V, В±1.35V ~ 6V |
vos - input offset voltage: | 200 uV |
-3db bandwidth | 190MHz |
