| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:18:03 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | Voltage Feedback |
| automotive | No |
| cmrr - common mode rejection ratio: | -98 dB |
| common mode rejection ratio | 84(dB) |
| диапазон напряжения питания | 0 |
| dual supply voltage (max) | ±12(V) |
| dual supply voltage (min) | ±2.25(V) |
| dual supply voltage (typ) | ±5(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 2.1 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gbp - gain bandwidth product: | 1 GHz |
| ib - input bias current: | 10.5 uA |
| input bias current | 10300(nA) |
| input offset voltage | 1(mV) |
| input offset voltage drift (uv/°c) | 0.8 |
| категория | Электронные компоненты/Микросхемы |
| количество усилителей | 1 Усилитель |
| количество выводов | 8вывод(-ов) |
| lead shape | Gull-wing |
| максимальная рабочая температура | 85 C |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage: | +/-12 V |
| maximum dual supply voltage (v) | ±12 |
| maximum input bias current (ua) | 10.3 5V |
| maximum input offset current | 0.5@5V |
| maximum input offset current (ua) | 0.5 5V |
| maximum input offset voltage (mv) | 1 5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum quiescent current (ma) | 7.5 5V |
| maximum single supply voltage (v) | 24 |
| минимальная рабочая температура | -40 C |
| minimum cmrr (db) | 84 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage: | +/-2.25 V |
| minimum dual supply voltage (v) | ±2.25 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 74 |
| minimum single supply voltage (v) | 04.05.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of elements | 1 |
| operating supply current: | 7.7 mA |
| operating supply voltage: | 4.5 V to 24 V |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current per channel: | 60 mA |

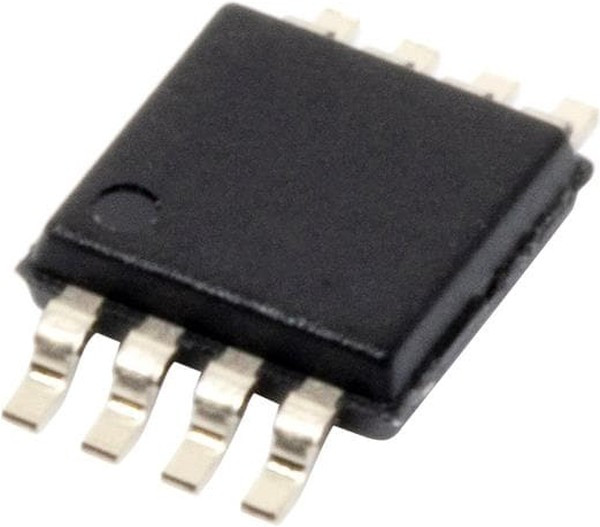

| package / case: | MSOP-8 |
| package type | MSOP |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8016040130 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| полоса пропускания | 560МГц |
| power supply rejection ratio | 74(dB) |
| power supply requirement | Single/Dual |
| power supply type | Dual|Single |
| ppap | No |
| process technology | XFCB |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 95 dB |
| rad hardened | No |
| rail/rail i/o type | No |
| series: | AD8021 |
| settling time | 0.028(us) |
| settling time: | 23 ns |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 24(V) |
| single supply voltage (min) | 4.5(V) |
| single supply voltage (typ) | 10(V) |
| скорость нарастания | 460В/мкс |
| slew rate | 390(V/us) |
| sr - slew rate: | 130 V/us |
| standard package name | SOP |
| стиль корпуса усилителя | MSOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Industrial |
| supply type: | Single, Dual |
| supply voltage - max: | 24 V |
| supply voltage - min: | 4.5 V |
| technology | BiCOM |
| topology: | Voltage Feedback |
| type | High Speed Amplifier |
| typical dual supply voltage (v) | ±5 |
| typical gain bandwidth product (mhz) | 1000 |
| typical input bias current (ua) | 7.5 5V |
| typical input noise voltage density (nv/rthz) | 2.1 5V |
| typical noninverting input current noise density (pa/rthz) | 2.1 5V |
| typical output current (ma) | 30 5V |
| typical settling time (ns) | 28 |
| typical single supply voltage (v) | 10 |
| typical slew rate (v/us) | 390 5V |
| typical voltage gain (db) | 76 |
| unity gain bandwidth product | 1000 |
| уровень чувствительности к влажности (msl) | MSL 1-Безлимитный |
| вес, г | 0.27 |
| voltage gain db: | 86 dB |
| voltage gain in db | 76(dB) |
| vos - input offset voltage: | 400 uV |
