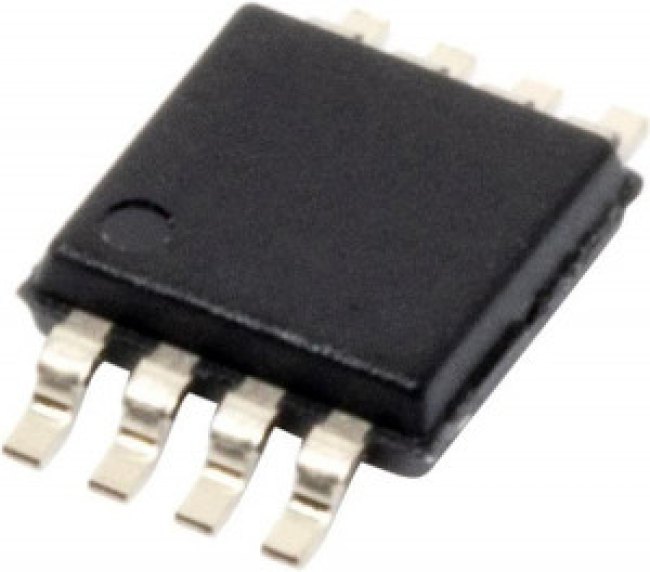

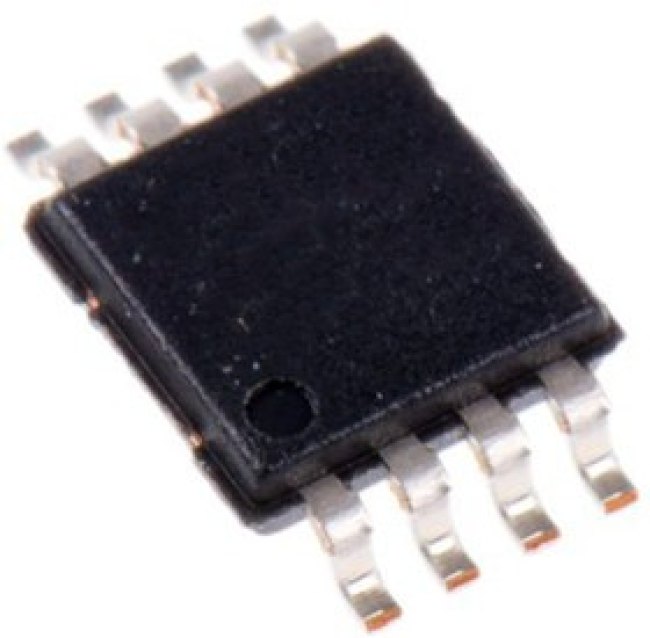

AD8002ARMZ, Op Amp Dual High Speed Amplifier ±6V/12V 8-Pin MSOP Tube
Оставить отзыв
В избранноеВ сравнение
Артикул: AD8002ARMZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Current Feedback Amplifier 2 Circuit 8-MSOP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:55:05 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | Current Feedback |
| amplifier type: | Video Amplifier |
| base product number | AD8002 -> |
| cmrr - common mode rejection ratio: | 54 dB |
| current - input bias | 5ВµA |
| current - output / channel | 70mA |
| current - supply | 10mA (x2 Channels) |
| development kit: | AD8002ARM-EBZ |
| dual supply voltage: | +/-5 V |
| eccn | EAR99 |
| en - input voltage noise density: | 2 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 50 |
| htsus | 8542.33.0001 |
| ib - input bias current: | 6 uA |
| input voltage range | ±3 to±6 V |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Analog Devices Inc. |
| maximum dual supply voltage: | +/-6 V |
| maximum input voltage | ±6 V |
| maximum operating frequency | 10 MHz |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum dual supply voltage: | +/-3 V |
| minimum input voltage | ±3 V |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| offset voltage | 9mV |
| operating supply current: | 5.75 mA |
| operating supply voltage: | 6 V to 12 V |
| operating temperature | -40В°C ~ 85В°C |
| output current | 70 mA |
| output current per channel: | 70 mA |
| output type | Current |
| package | Tube |
| package / case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| package / case: | MSOP-8 |
| package type | MSOP |
| packaging: | Tube |
| партномер | 8001212015 |
| pd - power dissipation: | 600 mW |
| pin count | 8 |
| power supply type | Dual |
| product: | Operational Amplifiers |
| product category: | Video Amplifiers |
| product type: | Video Amplifiers |
| psrr - power supply rejection ratio: | 75 dB |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | AD8002 |
| shutdown: | No Shutdown |
| slew rate | 1200V/Вµs |
| sr - slew rate: | 1200 V/us |
| subcategory: | Amplifier ICs |
| supplier device package | 8-MSOP |
| supply type: | Single, Dual |
| supply voltage - max: | 12 V |
| supply voltage - min: | 6 V |
| technology: | Bipolar |
| typical dual supply voltage | ±3 to±6V |
| typical gain bandwidth product | 600MHz |
| typical input voltage noise density | 2nV/√Hz |
| typical slew rate | 1200V/us |
| вес, г | 0.14 |
| voltage gain db: | 119 dB |
| voltage - input offset | 2mV |
| voltage - supply, single/dual (в±) | В±3V ~ 6V |
| vos - input offset voltage: | 2 mV |
| width | 3.2mm |
| -3db bandwidth | 600MHz |
