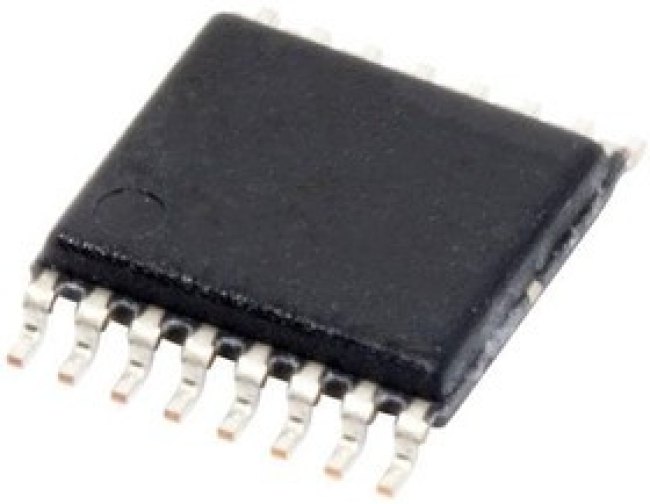

| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:14:00 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | J-FET |
| base product number | AD743 -> |
| cmrr - common mode rejection ratio: | 95 dB |
| common mode rejection ratio | 80(dB) |
| current - input bias | 250pA |
| current - output / channel | 40mA |
| current - supply | 8.1mA |
| dual supply voltage: | +/-15 V |
| dual supply voltage (max) | ±18(V) |
| dual supply voltage (min) | ±4.8(V) |
| dual supply voltage (typ) | ±15(V) |
| eccn | EAR99 |
| en - input voltage noise density: | 5.5 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 47 |
| gbp - gain bandwidth product: | 4.5 MHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 600 pA |
| input bias current | 0.2(nA) |
| input offset voltage | 1(mV) |
| input voltage range - max: | 13.3 V |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Analog Devices Inc. |
| maximum dual supply voltage: | +/-18 V |
| maximum operating temperature | +70 °C |
| maximum operating temperature: | +70 C |
| minimum dual supply voltage: | +/-4.8 V |
| minimum operating temperature | 0 °C |
| minimum operating temperature: | 0 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| number of elements | 1 |
| operating supply current: | 8.1 mA |
| operating supply voltage: | 4.5 V to 18 V |
| operating temperature | 0В°C ~ 70В°C |
| operating temperature classification | Commercial |
| operating temp range | 0C to 70C |
| output current per channel: | 40 mA |
| package | Tube |
| package / case | 16-SOIC (0.295"", 7.50mm Width) |
| package / case: | SOIC-16 |
| package type | SOIC W |
| packaging | Rail/Tube |
| packaging: | Tube |
| партномер | 8004966379 |
| pin count | 16 |
| power supply rejection ratio | 90(dB) |
| power supply requirement | Dual |
| power supply type | Dual |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 96 dB |
| rad hardened | No |
| rail/rail i/o type | No |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | AD743 |
| settling time | 6(us) |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | Not Required(V) |
| single supply voltage (min) | Not Required(V) |
| single supply voltage (typ) | Not Required(V) |
| slew rate | 2.8V/Вµs |
| sr - slew rate: | 2.8 V/us |
| subcategory: | Amplifier ICs |
| supplier device package | 16-SOIC |
| supply voltage - max: | 18 V, +/-18 V |
| supply voltage - min: | 4.5 V, +/-4.8 V |
| technology | BiFET |
| type: | General Purpose Amplifier |
| typical dual supply voltage | ±15V |
| typical gain bandwidth product | 4.5MHz |
| typical slew rate | 2.8V/µs |
| typical voltage gain | 126 dB |
| unity gain bandwidth product | 04.05.2024 |
| вес, г | 0.67 |
| voltage gain db: | 132.04 dB |
| voltage gain in db | 132.04(dB) |
| voltage - input offset | 250ВµV |
| voltage - supply, single/dual (в±) | 9.6V ~ 36V, В±4.8V ~ 18V |
| vos - input offset voltage: | 250 uV |
| width | 7.6mm |
| -3db bandwidth | 4.5MHz |
