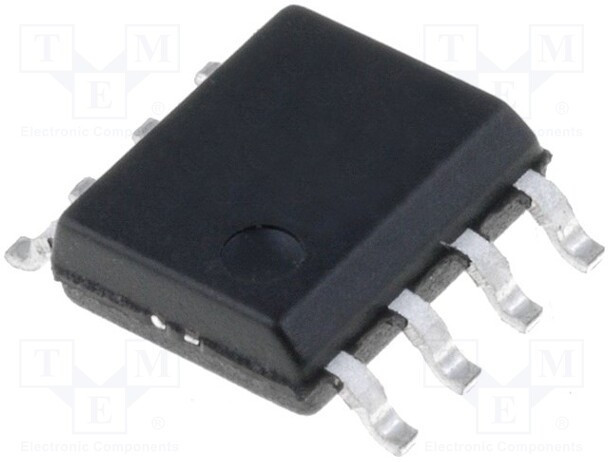

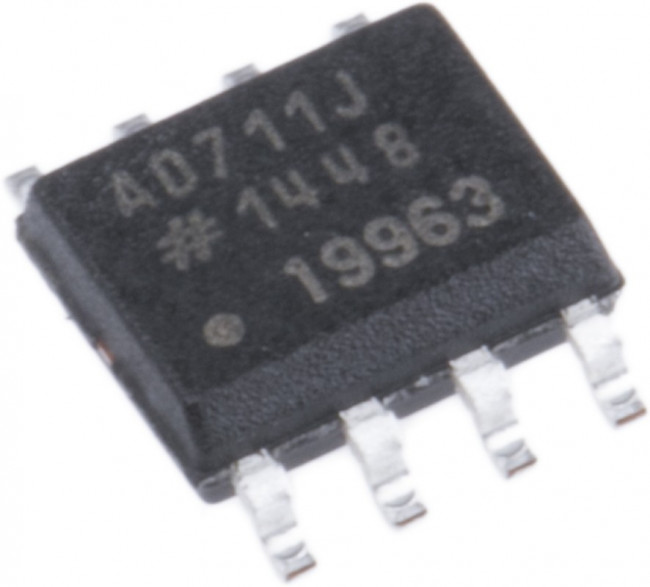

AD711JRZ, Precision Amplifiers HIGH SPEED BIFET OP AMP
Оставить отзыв
В избранноеВ сравнение
Артикул: AD711JRZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
J-FET Amplifier 1 Circuit 8-SOIC
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:55:07 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | J-FET |
| bandwidth | 4MHz |
| base product number | AD711 -> |
| common mode rejection ratio | 70(dB) |
| current - input bias | 15pA |
| current - output / channel | 25mA |
| current - supply | 2.5mA |
| dual supply voltage (max) | ±18(V) |
| dual supply voltage (min) | ±4.5(V) |
| dual supply voltage (typ) | ±15(V) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| hts | 8542.33.00.01 |
| htsus | 8542.33.0001 |
| input bias current | 0.1(nA) |
| input offset voltage | 2(mV) |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer | Analog Devices |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.0001@±15V |
| maximum input offset current | 0.000025@±15V |
| maximum input offset current (ua) | 0.000025@±15V |
| maximum input offset voltage (mv) | 2@±15V |
| maximum operating temperature | +70 °C |
| maximum operating temperature (°c) | 70 |
| maximum power dissipation (mw) | 500 |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum dual supply voltage (v) | ±4.5 |
| minimum operating temperature | 0 °C |
| minimum operating temperature (°c) | 0 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting type | Surface Mount |
| number of channels | 1 |
| number of channels per chip | 1 |
| number of circuits | 1 |
| number of elements | 1 |
| operating temperature | 0В°C ~ 70В°C |
| operating temperature classification | Commercial |
| operating temp range | 0C to 70C |
| package | Tube |
| package / case | 8-SOIC (0.154"", 3.90mm Width) |
| package height | 1.5(Max) |
| package length | 5(Max) |
| package type | SOIC |
| package width | 4(Max) |
| packaging | Tube |
| партномер | 8006198829 |
| part status | NRND |
| pcb changed | 8 |
| pin count | 8 |
| power dissipation | 0.5(W) |
| power supply requirement | Dual |
| power supply type | Dual |
| process technology | BiFET |
| rad hardened | No |
| rail/rail i/o type | No |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| settling time | 1(us) |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | Not Required(V) |
| single supply voltage (min) | Not Required(V) |
| single supply voltage (typ) | Not Required(V) |
| slew rate | 20V/Вµs |
| standard package name | SOP |
| supplier device package | 8-SOIC |
| supplier package | SOIC N |
| supplier temperature grade | Commercial |
| technology | BiFET |
| type | High Speed Amplifier |
| typical dual supply voltage | ±15V |
| typical dual supply voltage (v) | ±15 |
| typical gain bandwidth product (mhz) | 4 |
| typical input noise voltage density (nv/rthz) | 45@±15V |
| typical input voltage noise density | 45nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.01@±15V |
| typical settling time (ns) | 1000 |
| typical slew rate | 20V/µs |
| typical slew rate (v/us) | 20@±15V |
| typical voltage gain | 112 dB |
| typical voltage gain (db) | 112.04 |
| unity gain bandwidth product | 4 |
| вес, г | 0.54 |
| voltage gain in db | 112.04(dB) |
| voltage - input offset | 300ВµV |
| voltage - supply, single/dual (в±) | 9V ~ 36V, В±4.5V ~ 18V |
| width | 4mm |
| -3db bandwidth | 4MHz |
