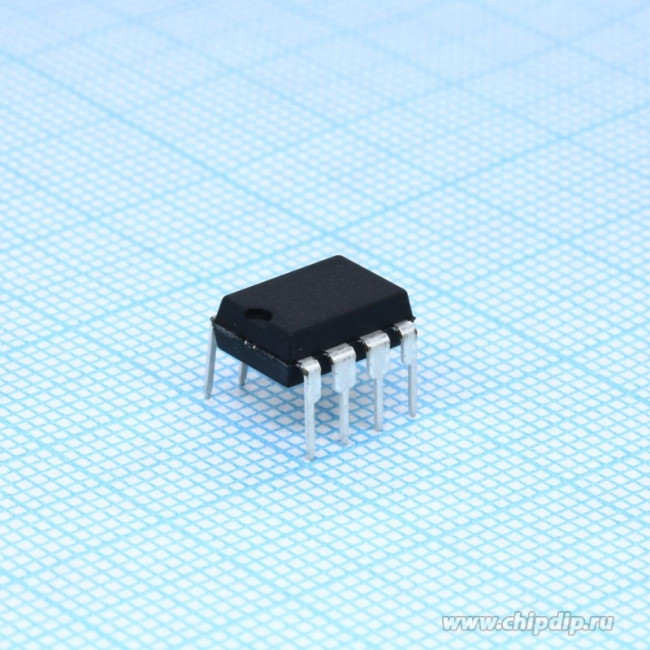

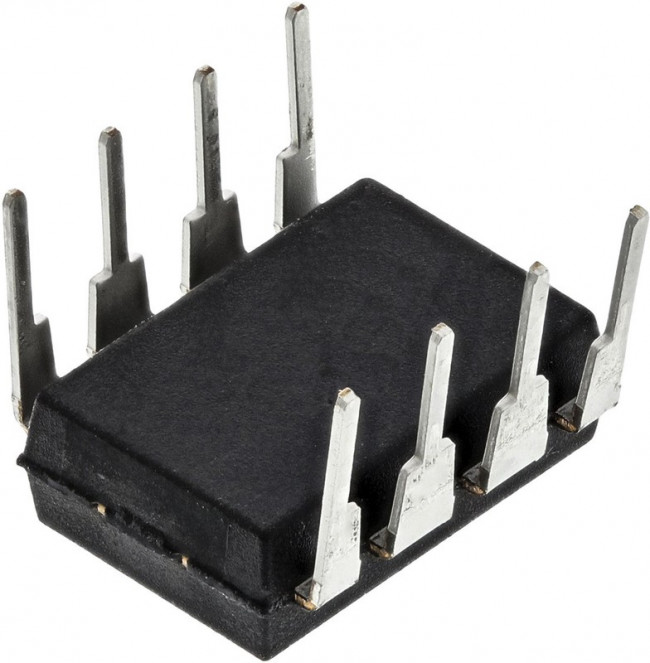

AD708JNZ, Operational Amplifiers - Op Amps LOW DRIFT BIPOLAR OP AMP
Оставить отзыв
В избранноеВ сравнение
Артикул: AD708JNZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Описание Микросхема, операционный усилитель, 900кГц, Ch: 2, DIP8, ±3-18ВDC,6-36ВDC Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
THT
Кол-во каналов
2
Корпус
DIP8
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:00:33 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | General Purpose |
| base product number | AD708 -> |
| cmrr - common mode rejection ratio | 140 dB |
| current - input bias | 1nA |
| current - supply | 4.5mA |
| dual supply voltage | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density | 9.6 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 50 |
| gain bandwidth product | 900kHz |
| height | 3.3 mm |
| hts | 8542.33.00.01 |
| htsus | 8542.33.0001 |
| ib - input bias current | 2.5 nA |
| in - input noise current density | 0.32 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Through Hole |
| length | 9.27 mm |
| manufacturer | Analog Devices Inc. |
| manufacturer type | Precision Amplifier |
| maximum dual supply voltage | +/-18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.0025@±15V |
| maximum input offset current (ua) | 0.002@±15V |
| maximum input offset voltage (mv) | 0.1@±15V |
| maximum operating temperature | +70 °C |
| maximum operating temperature (°c) | 70 |
| minimum cmrr (db) | 120 |
| minimum cmrr range (db) | >=115 |
| minimum dual supply voltage | +/-3 V |
| minimum dual supply voltage (v) | ±3 |
| minimum operating temperature | 0 °C |
| minimum operating temperature (°c) | 0 |
| minimum psrr (db) | 110 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style | Through Hole |
| mounting type | Through Hole |
| number of channels | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| operating supply current | 5.5 mA |
| operating supply voltage | 6 V to 36 V |
| operating temperature | 0В°C ~ 70В°C |
| output current per channel | 12.5 mA |
| package | Tube |
| package / case | 8-DIP (0.300"", 7.62mm) |
| package height | 03.03.2024 |
| package length | 9.27 |
| package type | PDIP |
| package width | 6.35 |
| packaging | Tube |
| партномер | 8006465475 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Dual |
| process technology | Bipolar |
| product | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| psrr - power supply rejection ratio | 130 dB |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | AD708 |
| shutdown | No Shutdown |
| shut down support | No |
| slew rate | 0.3V/Вµs |
| sr - slew rate | 0.3 V/us |
| standard package name | DIP |
| supplier device package | 8-PDIP |
| supplier package | PDIP N |
| supplier temperature grade | Commercial |
| supply type | Dual |
| supply voltage - max | 36 V |
| supply voltage - min | 6 V |
| technology | Bipolar |
| type | PRECISION AMPLIFIER |
| typical dual supply voltage | ±12 V, ±15 V, ±5 V, ±9 V |
| typical dual supply voltage (v) | ±12|±5|±15|±9 |
| typical gain bandwidth product | 900kHz |
| typical gain bandwidth product (mhz) | 0.9 |
| typical input noise voltage density (nv/rthz) | 10.3@±15V |
| typical input voltage noise density | 10.3nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.32@±15V |
| typical slew rate | 0.3V/µs |
| typical slew rate (v/us) | 0.3@±15V |
| typical voltage gain | 140 dB |
| typical voltage gain (db) | 140 |
| unit weight | 0.032805 oz |
| вес, г | 0.5 |
| voltage gain db | 140 dB |
| voltage - input offset | 30ВµV |
| voltage - supply, single/dual (в±) | 6V ~ 36V, В±3V ~ 18V |
| vos - input offset voltage | 30 uV |
| width | 7.24mm |
| -3db bandwidth | 900kHz |
