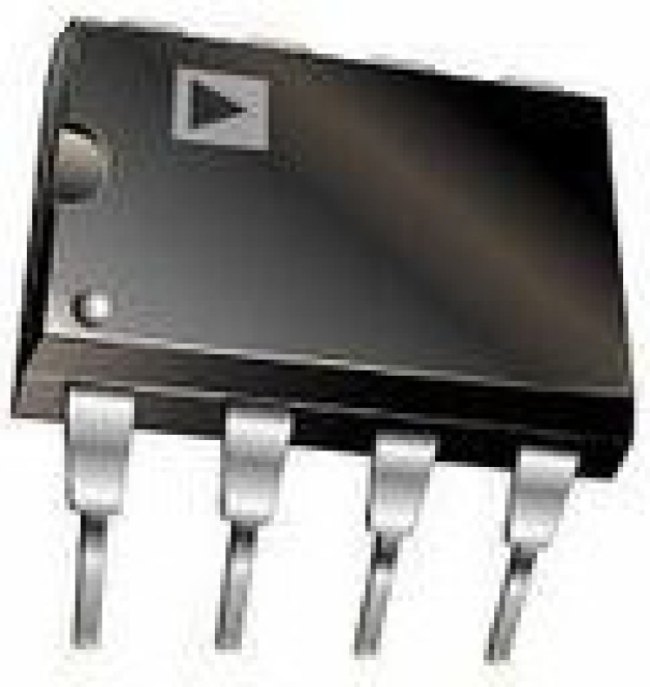

AD626BNZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsDifferential Amplifier 1 Circuit 8-PDIP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:57:54 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | Differential |
| automotive | No |
| base product number | AD627 -> |
| cmrr - common mode rejection ratio: | 90 dB |
| current - output / channel | 12mA |
| current - supply | 1.5mA |
| dual supply voltage: | +/-5 V |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gbp - gain bandwidth product: | 100 kHz |
| htsus | 8542.33.0001 |
| input voltage range - max: | 10 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Through Hole |
| manufacturer: | Analog Devices Inc. |
| maximum dual supply voltage: | 6 V |
| maximum dual supply voltage (v) | ±6 |
| maximum input offset voltage (mv) | 2.5@5V |
| maximum input resistance (mohm) | 0.2(Typ)@5V |
| maximum operating supply voltage (v) | ±6|10 |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 10 |
| maximum supply voltage range (v) | 10 to 15 |
| minimum cmrr (db) | 55 |
| minimum cmrr range (db) | <60 |
| minimum dual supply voltage: | +/-1.2 V |
| minimum dual supply voltage (v) | ±1.2 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 74 |
| minimum single supply voltage (v) | 02.04.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| number of elements per chip | 2 |
| operating supply current: | 230 uA |
| operating supply voltage: | 5 V |
| operating temperature | -40В°C ~ 85В°C |
| output current per channel: | 12 mA |
| package | Tube |
| package / case | 8-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8005767781 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Differential Amplifiers |
| product category: | Differential Amplifiers |
| product type: | Differential Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | AD626 |
| settling time: | 22 us |
| slew rate | 0.22V/Вµs |
| sr - slew rate: | 0.22 V/us |
| standard package name | DIP |
| subcategory: | Amplifier ICs |
| supplier device package | 8-PDIP |
| supplier package | PDIP N |
| supplier temperature grade | Industrial |
| supply type: | Single, Dual |
| supply voltage - max: | 10 V |
| supply voltage - min: | 2.4 V |
| type | Differential Amplifier |
| typical dual supply voltage (v) | ±5 |
| typical single supply voltage (v) | 5 |
| voltage - input offset | 50ВµV |
| voltage - supply, single/dual (в±) | 2.4V ~ 10V, В±1.2V ~ 5V |
| vos - input offset voltage: | 1.9 mV |
| -3db bandwidth | 100kHz |
