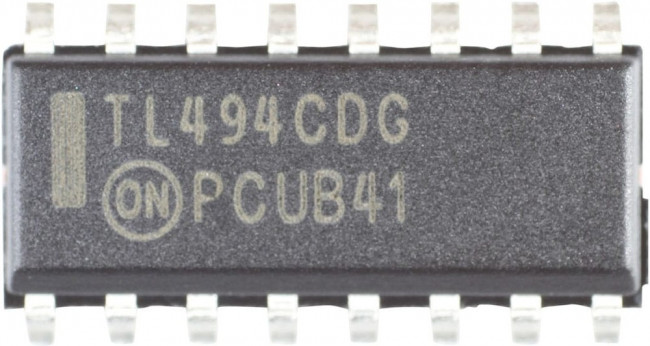

Name: TL494CDR2G, TL494CDR2G, PWM Controller, 40 V, 200 kHz 16-Pin, SOIC
Brand: ON Semiconductor***
SKU: TL494CDR2G

Электронные компоненты Микросхемы ШИМ-контроллеры ON Semiconductor TL494CDR2G, TL494CDR2G, PWM Controller, 40 V ...

Подробное описание

120 ₽

– +

Бонус: 2.4 !

Бонусная программа

Итого: 120 ₽

Купить

Semiconductors\Power Management ICs\PWMCurrent mode and voltage mode DC-DC controllers for power conversion circuits.

Информация о производителе
Производитель	ON Semiconductor***
Основные
Дата загрузки	04.05.2024
Время загрузки	23:08:21
Бренд	ON Semiconductor***
Вес и габариты
adjustable output	No
automotive	No
control method	Voltage
eccn (us)	ear99
eu rohs	compliant
fall time (ns)	40
категория	Электронные компоненты/Микросхемы
lead shape	Gull-wing
maximum duty cycle (%)	48(Typ)
maximum operating supply voltage	40 V
maximum operating supply voltage (v)	40
maximum operating temperature	+70 °C
maximum operating temperature (°c)	70
maximum power dissipation (mw)	1000
maximum supply current	15 mA
maximum supply current (ma)	7(Typ)
maximum switching frequency	200 kHz
minimum operating supply voltage	7 V
minimum operating supply voltage (v)	7
minimum operating temperature	0 °C
minimum operating temperature (°c)	0
mounting	surface mount
mounting type	Surface Mount
number of pwm outputs	2
on/off pin	No
operating supply voltage (v)	7 to 40
package type	SOIC
packaging	Tape and Reel
партномер	8010508833
part status	active
pcb changed	16
pin count	16
ppap	No
rise time (ns)	100
standard package name	SO
supplier package	SOIC
switching frequency (khz)	200
synchronous pin	No
topology	Boost\|Buck\|Flyback\|Forward\|Push-Pull\|Half Bridge
type	Voltage Mode PWM Controller
typical operating supply voltage (v)	15
вес, г	5
width	4mm
