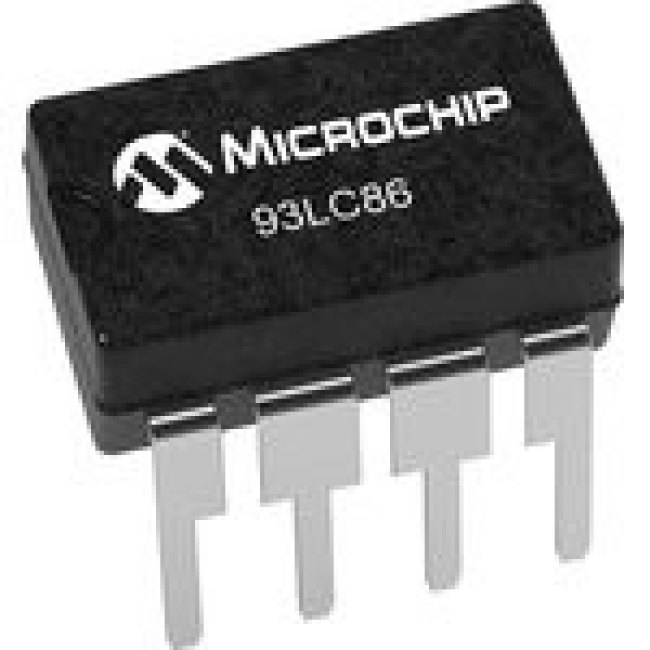

93LC86-I/SN, EEPROM, 16 Кбит, 2К x 8бит / 1К x 16бит, Serial Microwire, 3 МГц, SOIC, 8 вывод(-ов) (93LC86-I/SN) — купить

ИС памяти EEPROM 16Kb (2K x 8, 1K x 16) SPI 3MHz 8-SOIC

Подробное описание

Основные
вес, г	0.15
moisture sensitivity level (msl)	1 (Unlimited)
mounting type	Surface Mount
operating temperature	-40В°C ~ 85В°C (TA)

270 ₽

- +

Бонус: 5.4 !

Бонусная программа

Итого: 270 ₽

Купить

ИС памяти EEPROM 16Kb (2K x 8, 1K x 16) SPI 3MHz 8-SOIC

Основные
вес, г	0.15
moisture sensitivity level (msl)	1 (Unlimited)
mounting type	Surface Mount
operating temperature	-40В°C ~ 85В°C (TA)
package	Tube
package / case	8-SOIC (0.154"", 3.90mm Width)
rohs status	ROHS3 Compliant
eccn	EAR99
htsus	8542.32.0051
reach status	REACH Unaffected
supplier device package	8-SOIC
package type	PDIP, SOIC
minimum operating temperature	-40 C
pin count	8
maximum operating temperature	+85 C
base product number	93LC86 ->
voltage - supply	2.5V ~ 6.0V
minimum operating supply voltage	2.5 V
maximum operating supply voltage	5.5 V
interface type	Serial-3 Wire
Вес и габариты
pcn packaging	http://www.microchip.com/mymicrochip/NotificationD
technology	EEPROM
pcn assembly/origin	http://www.microchip.com/mymicrochip/NotificationD
memory size	16Kb (2K x 8, 1K x 16)
memory type	Non-Volatile
memory format	EEPROM
number of words	1024
data retention	200yr
programming voltage	2.5 → 5.5V
clock frequency	3MHz
memory interface	SPI
write cycle time - word, page	5ms
organisation	1024x16 bit
number of bits per word	16bit
maximum random access time	300ns
