EEPROM Serial-SPI 4K-bit 512 x 8 3,3 В / 5 В 8-контактная трубка PDIP

Подробное описание

160 ₽

– +

Бонус: 3.2 !

Бонусная программа

Итого: 160 ₽

Купить

EEPROM Serial-SPI 4K-bit 512 x 8 3,3 В / 5 В 8-контактная трубка PDIP

Основные
pin count	8
packaging	Tube
automotive	No
eu rohs	compliant
lead shape	Through Hole
maximum operating temperature (°c)	85
mounting	Through Hole
part status	active
pcb changed	8
ppap	No
standard package name	DIP
supplier package	PDIP
eccn (us)	ear99
minimum operating temperature (°c)	-40
supplier temperature grade	Industrial
maximum operating supply voltage (v)	5.5
process technology	CMOS
interface type	Serial-SPI
Вес и габариты
maximum operating frequency (mhz)	10
minimum operating supply voltage (v)	2.5
typical operating supply voltage (v)	5\|3.3
programmability	Yes
chip density (bit)	4K
data retention (year)	200(Min)
hardware data protection	Yes
max. access time (ns)	50
number of bits per word (bit)	8
operating current (ma)	5
organization	512x8

0.0

общая оценка

Всего 0 отзывов

0 отзывов

Отзывов нет

Кнопки

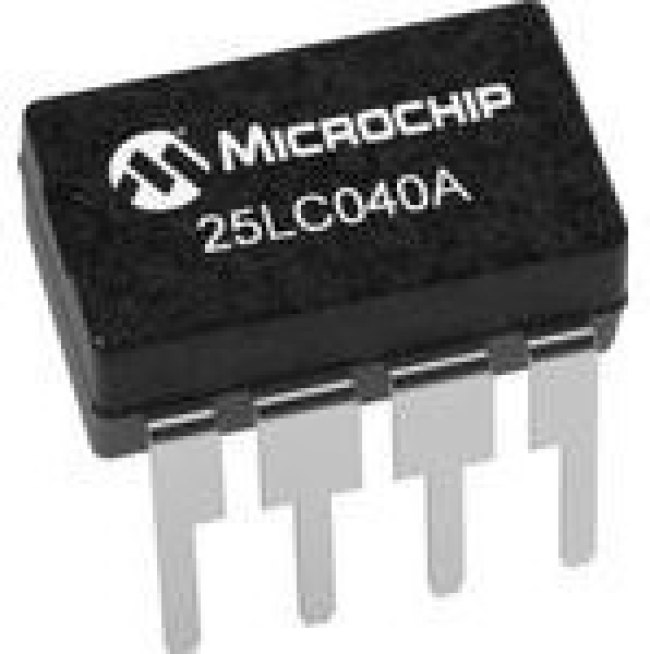

25LC040A-I/P
