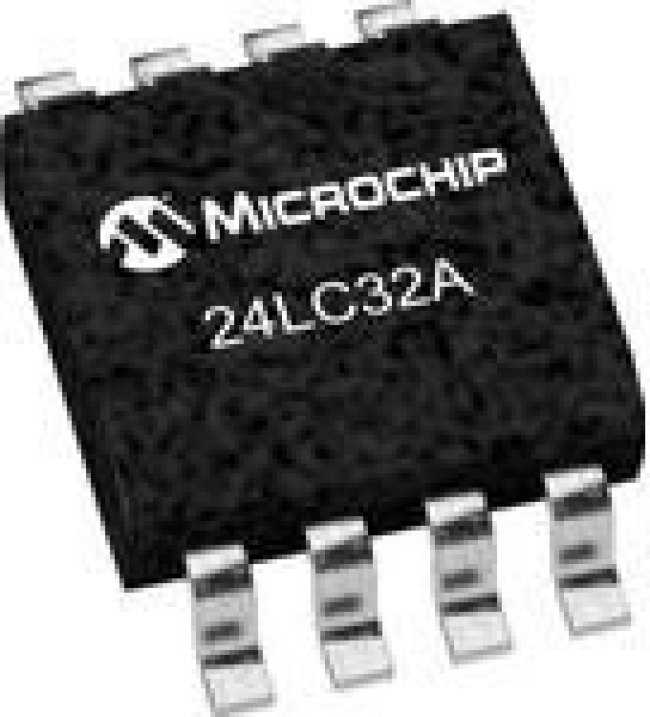

Memory\RAM\EEPROMEEPROM Serial-I2C 32K-bit 4K x 8 3.3V/5V Automotive 8-Pin SOIC N Tube

Подробное описание

260 ₽

– +

Бонус: 5.2 !

Бонусная программа

Итого: 260 ₽

Купить

Memory\RAM\EEPROMEEPROM Serial-I2C 32K-bit 4K x 8 3.3V/5V Automotive 8-Pin SOIC N Tube

Основные
pin count	8
packaging	Tube
automotive	Yes
eu rohs	compliant
lead shape	Gull-wing
maximum operating temperature (°c)	125
mounting	surface mount
part status	active
pcb changed	8
ppap	Yes
standard package name	SOP
supplier package	SOIC N
eccn (us)	ear99
minimum operating temperature (°c)	-40
supplier temperature grade	Automotive
maximum operating supply voltage (v)	5.5
process technology	CMOS
interface type	Serial-I2C
Вес и габариты
maximum operating frequency (mhz)	0.4
minimum operating supply voltage (v)	2.5
typical operating supply voltage (v)	5\|3.3
programmability	Yes
chip density (bit)	32K
data retention (year)	200(Min)
hardware data protection	Yes
max. access time (ns)	900
number of bits per word (bit)	8
operating current (ma)	3
organization	4Kx8
programming voltage (v)	2.5 to 5.5

0.0

общая оценка

Всего 0 отзывов

0 отзывов

Отзывов нет

Кнопки

24LC32A-E/SN, EEPROM Serial-I2C 32K-bit 4K x 8 3.3V/5V Automotive 8-Pin SOIC N Tube
