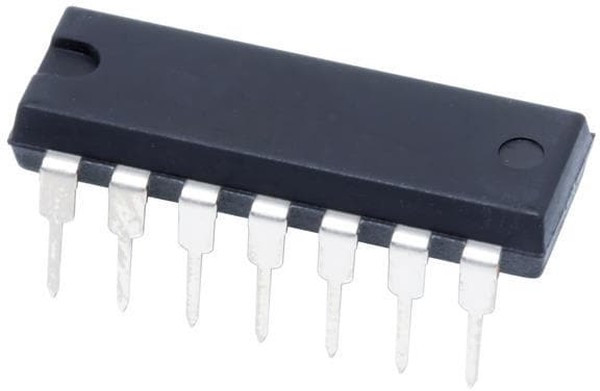

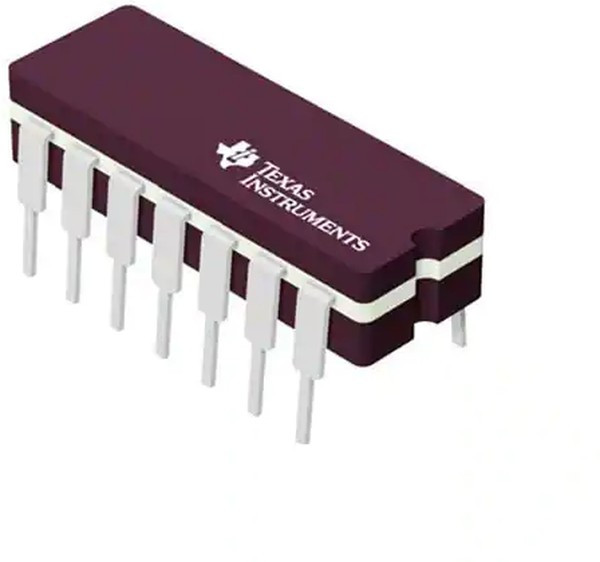

| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 09.06.2024 |
| Время загрузки | 2:07:56 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| absolute propagation delay time (ns) | 06.05.2024 |
| automotive | No |
| base product number | 74F02 -> |
| current - output high, low | 1mA, 20mA |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 25 |
| function: | Quad 2 Input |
| high level output current: | -1 mA |
| hts | 8542.39.00.01 |
| htsus | 8542.39.0001 |
| input type: | TTL |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Through Hole |
| logic family | F |
| logic family: | F |
| logic function | NOR |
| logic function: | NOR |
| logic level - high | 2V |
| logic level - low | 0.8V |
| logic type | NOR Gate |
| logic type: | 2-Input NOR |
| low level output current: | 20 mA |
| manufacturer: | Texas Instruments |
| maximum high level output current (ma) | -1 |
| maximum high level output current - (ma) | -1 |
| maximum low level output current (ma) | 20 |
| maximum low level output current - (ma) | 20 |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating supply voltage - (v) | 05.05.2024 |
| maximum operating temperature: | +70 C |
| maximum operating temperature (°c) | 70 |
| maximum propagation delay time @ maximum cl (ns) | 5.5@5V |
| max propagation delay @ v, max cl | 5.5ns @ 5V, 50pF |
| military | No |
| minimum operating supply voltage (v) | 04.05.2024 |
| minimum operating supply voltage - (v) | 04.05.2024 |
| minimum operating temperature: | 0 C |
| minimum operating temperature (°c) | 0 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of bits: | 4 bit |
| number of circuits | 4 |
| number of elements per chip | 4 |
| number of element inputs | 2-IN |
| number of element outputs | 1 |
| number of gates: | 4 Gate |
| number of inputs | 2 |
| number of input lines: | 8 Input |
| number of output enables per element | 0 |
| number of output lines: | 4 Output |
| number of selection inputs per element | 0 |
| operating supply current: | 13 uA |
| operating supply voltage: | 5 V |
| operating temperature | 0В°C ~ 70В°C |
| operating temperature - (??c) | 0~70 |
| operating temperature range: | 0 C to+70 C |
| output type | Push-Pull |
| output type: | TTL |
| package | Tube |
| package / case | 14-DIP (0.300"", 7.62mm) |
| package/case: | PDIP-14 |
| package height | 5.08(Max) - 0.51(Min) |
| package length | 19.69(Max) |
| package width | 6.6(Max) |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8002948603 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| process technology | Bipolar |
| product: | Single-Function Gate |
| product category: | Logic Gates |
| product type: | Logic Gates |
| propagation delay test condition (pf) | 50 |
| propagation delay time: | 6.5 ns |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series | 74F -> |
| series: | SN74F02 |
| standard package name | DIP |
| subcategory: | Logic ICs |
| supplier device package | 14-PDIP |
| supplier package | PDIP |
| supplier temperature grade | Commercial |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 4.5 V |
| typical operating supply voltage (v) | 5 |
| вес, г | 1.643 |
| voltage - supply | 4.5V ~ 5.5V |
