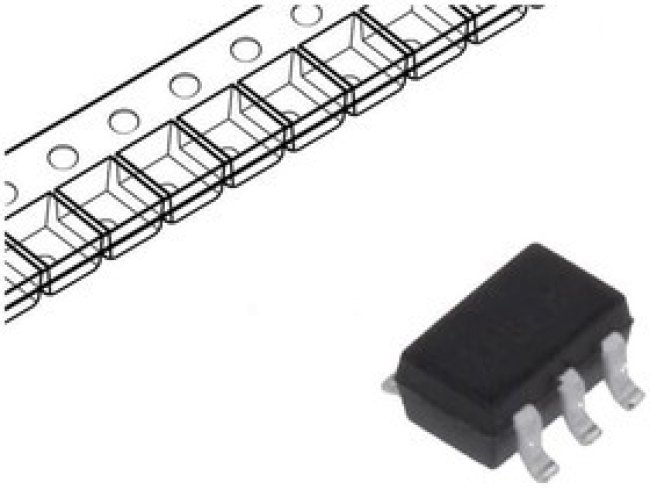

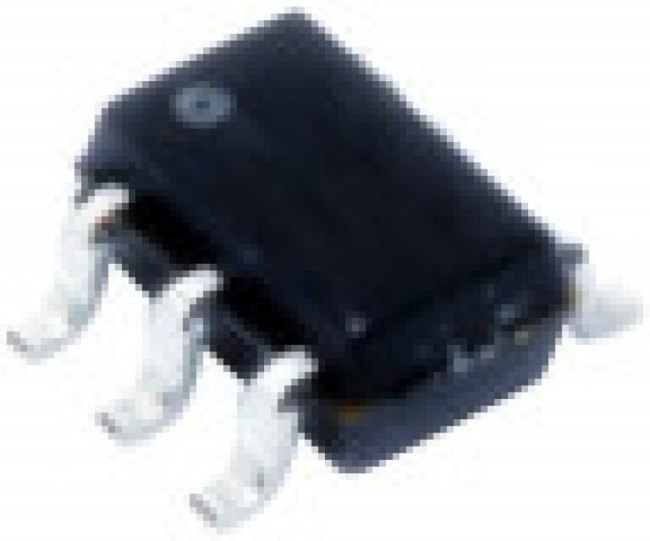

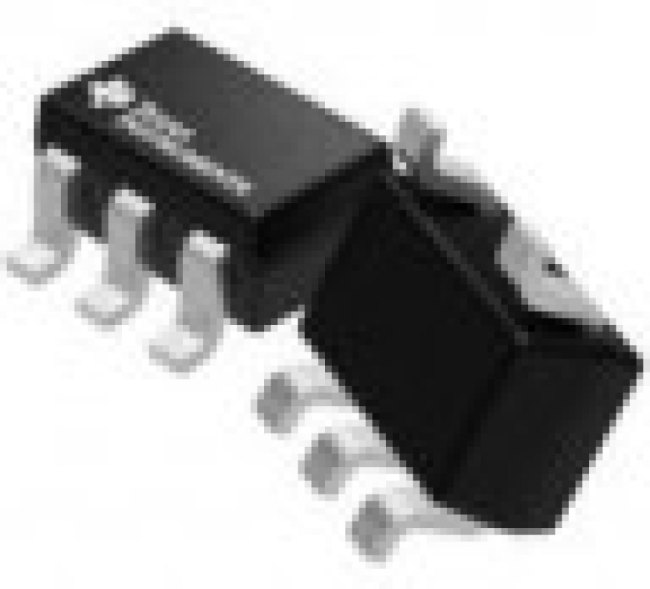

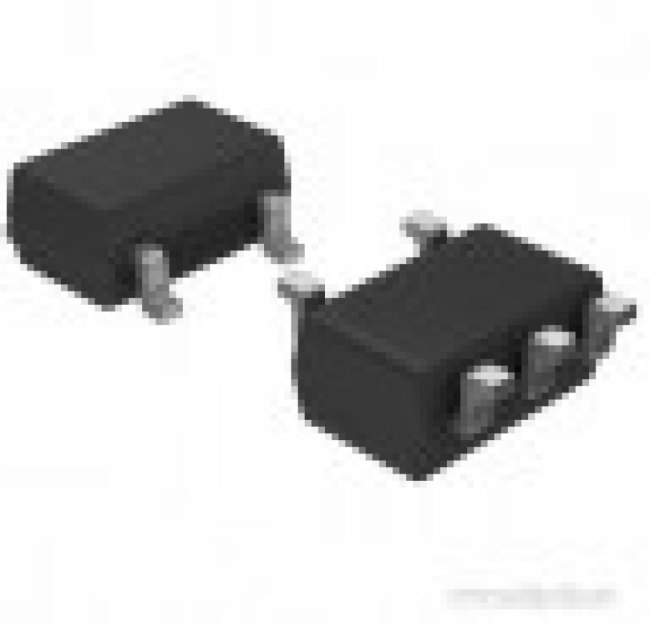

SN74AHC1G04DCKR, Повторители, драйверы, ресиверы, трансиверы SC705
Оставить отзыв
В избранноеВ сравнение
Артикул: SN74AHC1G04DCKR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Описание Повторители, драйверы, ресиверы, трансиверы SC705
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 09.06.2024 |
| Время загрузки | 1:46:42 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| absolute propagation delay time (ns) | 13 |
| automotive | No |
| base product number | 74AHC1G04 -> |
| current - output high, low | 8mA, 8mA |
| current - quiescent (max) | 1ВµA |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| function: | Single |
| high level output current | 8mA、8mA |
| high level output current: | -8 mA |
| htsus | 8542.39.0001 |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| logic family | AHC |
| logic family: | 74AHC |
| logic function | Inverter Schmitt Trigger |
| logic level - high | 1.5V ~ 3.85V |
| logic level - low | 0.5V ~ 1.65V |
| logic type | Inverter |
| logic type: | Inverting |
| low level output current: | 8 mA |
| manufacturer: | Texas Instruments |
| maximum high level output current (ma) | -8 |
| maximum low level output current (ma) | 8 |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature | +85℃ |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum propagation delay time @ maximum cl (ns) | 10.6@3.3V|7.5@5V |
| maximum quiescent current (ua) | 1 |
| max propagation delay @ v, max cl | 7.5ns @ 5V, 50pF |
| minimum operating supply voltage (v) | 2 |
| minimum operating temperature | -40℃ |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of circuits | 1 |
| number of circuits: | 1 Circuit |
| number of elements per chip | 1 |
| number of inputs | 1 |
| number of inputs/bits per element | 1 |
| operating supply voltage: | 2 V to 5.5 V |
| operating temperature | -40В°C ~ 85В°C |
| operating temperature range: | -40 C to+125 C |
| output type | Push-Pull |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | 5-TSSOP, SC-70-5, SOT-353 |
| package / case: | SC70-5 |
| packaging | Tape and Reel |
| партномер | 8017547711 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| ppap | No |
| process technology | CMOS |
| product category: | Inverters |
| product type: | Inverters |
| propagation delay - max | 7.5ns 5V，50pF |
| propagation delay test condition (pf) | 50 |
| quiescent current | 1uA |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series | 74AHC -> |
| series: | SN74AHC1G04 |
| standard package name | SOT |
| subcategory: | Logic ICs |
| supplier device package | SC-70-5 |
| supplier package | SC-70 |
| supplier temperature grade | Commercial |
| supply voltage - max | 5.5V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 2V |
| supply voltage - min: | 2 V |
| typical operating supply voltage (v) | 2.5|3.3|5 |
| вес, г | 0.3 |
| voltage - supply | 2V ~ 5.5V |
