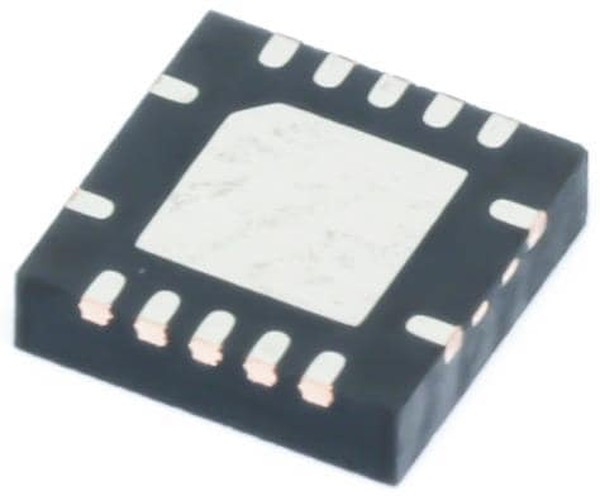

SN74AHC74RGYR, Flip Flop D-Type Pos-Edge 2-Element 14-Pin VQFN EP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: SN74AHC74RGYR
- Характеристики
- Отзывы (0)
- Реквизиты
Информация о производителе | |
Производитель | Texas Instruments |
Основные | |
Дата загрузки | 07.07.2023 |
Бренд | Texas Instruments |
Вес и габариты | |
absolute propagation delay time (ns) | 18 |
bus hold | No |
eccn (us) | EAR99 |
eu rohs | Compliant |
factory pack quantity: factory pack quantity: | 3000 |
function: | Dual with Clear Preset |
high level output current: | -8 mA |
hts | 8542.39.00.01 |
input signal type | Single-Ended |
input type: | CMOS |
категория | Электронные компоненты/Микросхемы |
lead shape | No Lead |
logic family | AHC |
logic family: | AHC |
logic function | D-Type |
logic type: | D-Type Flip-Flop |
low level output current: | 8 mA |
manufacturer: | Texas Instruments |
maximum high level output current (ma) | -8 |
maximum low level output current (ma) | 8 |
maximum operating supply voltage (v) | 05.05.2023 |
maximum operating temperature: | +125 C |
maximum operating temperature (°c) | 125 |
maximum propagation delay time @ maximum cl (ns) | 15.4@3.3V|9.3@5V |
maximum quiescent current (ma) | 0.002 |
minimum operating supply voltage (v) | 2 |
minimum operating temperature: | -40 C |
minimum operating temperature (°c) | -40 |
moisture sensitive: | Yes |
mounting | Surface Mount |
mounting style: | SMD/SMT |
number of channels: | 2 |
number of channels per chip | 2 |
number of circuits: | 2 |
number of elements per chip | 2 |
number of element inputs | 1 |
number of element outputs | 1 |
number of input lines: | 4 |
number of output lines: | 2 |
operating supply voltage: | 5 V |
operating temperature range: | -40 C to+125 C |
output type: | CMOS |
package / case: | VQFN-14 |
package height | 0.95(Max) |
package length | 3.65(Max) |
package width | 3.65(Max) |
packaging | Tape and Reel |
packaging: | Reel, Cut Tape, MouseReel |
партномер | 8002045528 |
part status | Active |
pcb changed | 14 |
pin count | 14 |
polarity | Inverting/Non-Inverting |
polarity: | Inverting/Non-Inverting |
process technology | CMOS |
product category: | Flip Flops |
product type: | Flip Flops |
propagation delay test condition (pf) | 50 |
propagation delay time: | 15.4 ns |
quiescent current: | 2 uA |
reset type: | Set, Reset |
series: | SN74AHC74 |
set/reset | Set/Reset |
standard package name | QFN |
subcategory: | Logic ICs |
supplier package | VQFN EP |
supply voltage - max: | 5.5 V |
supply voltage - min: | 2 V |
triggering type | Positive-Edge |
typical operating supply voltage (v) | 2.5|3.3|5 |
