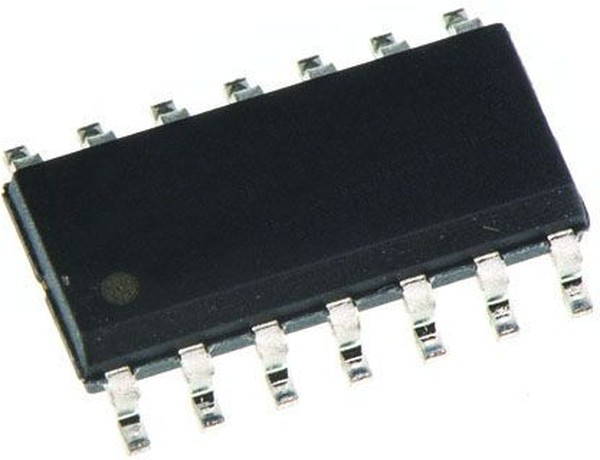

CD74HCT74M, IC: цифровая; D триггер,обнуляемая; Ch: 2; SMD; SO14; туба; HCT
Оставить отзыв
В избранноеВ сравнение
Артикул: CD74HCT74M
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Триггер, 2 элемента, тип D, 1 бит, положительный фронт, 14-SOIC (0,154 дюйма, ширина 3,90 мм)
Информация о производителе | |
Производитель | Texas Instruments |
Основные | |
Дата загрузки | 07.07.2023 |
Бренд | Texas Instruments |
Вес и габариты | |
base product number | 74HCT74 -> |
clock frequency | 50MHz |
current - output high, low | 4mA, 4mA |
current - quiescent (iq) | 4ВµA |
eccn | EAR99 |
factory pack quantity: factory pack quantity: | 750 |
function | Set(Preset) and Reset |
function: | Dual Positive Edge Triggered |
high level output current: | -4 mA |
htsus | 8542.39.0001 |
input capacitance | 10pF |
input type | Single Ended |
input type: | TTL |
категория | Электронные компоненты/Микросхемы |
logic family | HCT |
logic family: | HCT |
logic function | D Type |
logic type: | D-Type Flip-Flop |
low level output current: | 4 mA |
manufacturer: | Texas Instruments |
maximum operating supply voltage | 5.5 V |
maximum operating temperature | +125 °C |
maximum operating temperature: | +125 C |
maximum propagation delay time @ maximum cl | 35 ns @ 4.5 V |
max propagation delay @ v, max cl | 35ns @ 4.5V, 50pF |
minimum operating supply voltage | 4.5 V |
minimum operating temperature | -55 °C |
minimum operating temperature: | -55 C |
moisture sensitivity level (msl) | 1 (Unlimited) |
mounting style: | SMD/SMT |
mounting type | Surface Mount |
number of bits per element | 1 |
number of channels: | 2 |
number of circuits: | 2 |
number of elements | 2 |
number of elements per chip | 2 |
number of input lines: | 1 |
number of output lines: | 1 |
operating supply voltage: | 5 V |
operating temperature | -55В°C ~ 125В°C (TA) |
operating temperature range: | -55 C to+125 C |
output signal type | Differential |
output type | Complimentary |
output type: | CMOS |
package | Tube |
package / case | 14-SOIC (0.154"", 3.90mm Width) |
package / case: | SOIC-14 |
package type | SOIC |
packaging: | Tube |
партномер | 8002583518 |
pin count | 14 |
polarity | Inverting, Non-Inverting |
polarity: | Inverting/Non-Inverting |
product category: | Flip Flops |
product type: | Flip Flops |
propagation delay test condition | 50pF |
propagation delay time: | 35 ns |
quiescent current: | 4 uA |
reach status | REACH Unaffected |
reset type: | Set, Reset |
rohs status | ROHS3 Compliant |
series | 74HCT -> |
series: | CD74HCT74 |
set/reset | Yes |
subcategory: | Logic ICs |
supplier device package | 14-SOIC |
supply voltage - max: | 5.5 V |
supply voltage - min: | 4.5 V |
triggering type | Positive Edge |
trigger type | Positive Edge |
type | D-Type |
вес, г | 0.13 |
voltage - supply | 4.5V ~ 5.5V |
width | 3.91mm |
