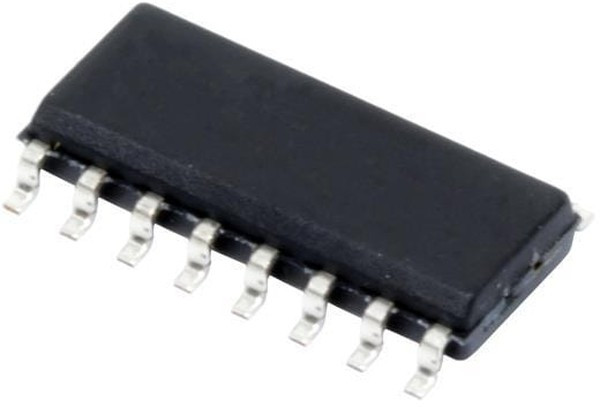

CD74AC112M96, Flip Flop JK-Type Neg-Edge 2-Element 16-Pin SOIC T/R

Оставить отзыв
В избранноеВ сравнение
Артикул: CD74AC112M96
Texas Instruments
Информация о производителе
ПроизводительTexas Instruments
Основные
БрендTexas Instruments
Вес и габариты
absolute propagation delay time (ns)153
73
+
Бонус: 1.46 !
Бонусная программа
Итого: 73
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Standard and Specialty Logic\Standard Logic\Flip FlopsFlip Flop JK-Type Neg-Edge 2-Element 16-Pin SOIC T/R
Информация о производителе
ПроизводительTexas Instruments
Основные
БрендTexas Instruments
Вес и габариты
absolute propagation delay time (ns)153
automotiveNo
bus holdNO
eccn (us)EAR99
eu rohsCompliant
factory pack quantity: factory pack quantity:2500
function:JK Type
high level output current:-24 mA
input signal typeSingle-Ended
input type:CMOS, LVTTL
категорияЭлектронные компоненты/Микросхемы
lead shapeGull-wing
logic familyAC
logic family:AC
logic functionJK-Type
logic type:J-K Negative Edge Triggered Flip-Flop
low level output current:24 mA
manufacturer:Texas Instruments
maximum high level output current (ma)-24
maximum low level output current (ma)24
maximum operating supply voltage (v)05.05.2023
maximum operating temperature:+125 C
maximum operating temperature (°c)125
maximum propagation delay time @ maximum cl (ns)129@1.5V|14.4@3.3V|10.3@5V
maximum quiescent current (ma)0.004
minimum operating supply voltage (v)01.05.2023
minimum operating temperature:-55 C
minimum operating temperature (°c)-55
mountingSurface Mount
mounting style:SMD/SMT
number of channels:2
number of channels per chip2
number of circuits:2
number of elements per chip2
number of element inputs2
number of element outputs1
number of input lines:2
number of output lines:1
operating supply voltage:1.5 V to 5.5 V
operating temperature range:-55 C to+125 C
output type:Differential
package / case:SOIC-Narrow-16
packagingTape and Reel
packaging:Reel, Cut Tape, MouseReel
партномер8002095821
part statusActive
pcb changed16
pin count16
polarityInverting/Non-Inverting
polarity:Inverting/Non-Inverting
ppapNo
process technologyCMOS
product category:Flip Flops
product type:Flip Flops
propagation delay test condition (pf)50
propagation delay time:129 ns
quiescent current:4 uA
reset type:Set, Reset
series:CD74AC112
set/resetSET/RESET
standard package nameSO
subcategory:Logic ICs
supplier packageSOIC
supply voltage - max:5.5 V
supply voltage - min:1.5 V
triggering typeNEGATIVE-EDGE
typical operating supply voltage (v)1.8|2.5|3.3|5
