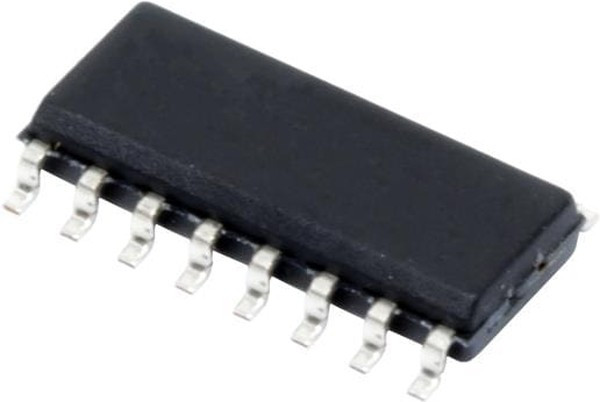

CD4099BM, Защелка, CD4099, Адресуемая, Стандартный, 50 нс, 6.8 мА, SOIC

Полупроводники - Микросхемы\Логика\Триггеры-защелкиThe CD4099BM is a 8-bit CMOS Addressable Latch can perform a variety of functions. Data are inputted to a particular bit in the latch when that bit is addressed (by means of input A0, A1, A2) and when WD is at a low level. When WD is high, data entry is inhibited, however, all 8 outputs can be continuously read independent of WD and address inputs. A master RESET input is available, which RESETs all bits to a logic 0 level when RESET and WD are at a high level. When RESET is at a high level and WRITE RESET is at a low level, the latch acts as a 1-of-8 demultiplexer, the bit that is addressed has an active output which follows the data input, while all unaddressed bits are held to a logic 0 level. • Serial data input• Active parallel output• Storage register capability• Master clear• Can function as demultiplexer• Standardized, symmetrical output characteristics• 100% Tested for quiescent current at 20V• Green product and no Sb/Br
