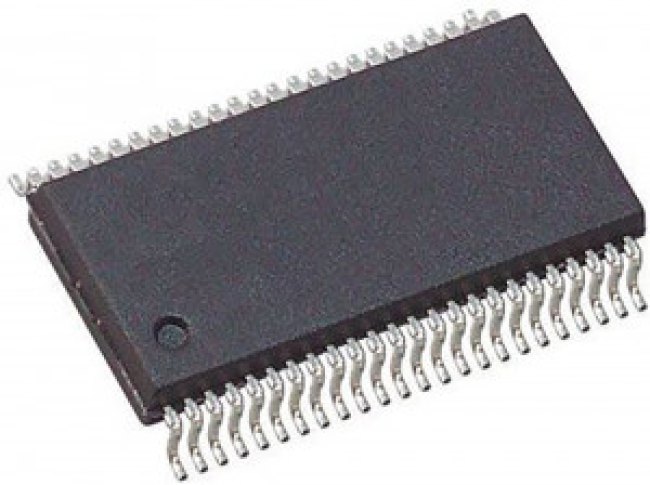

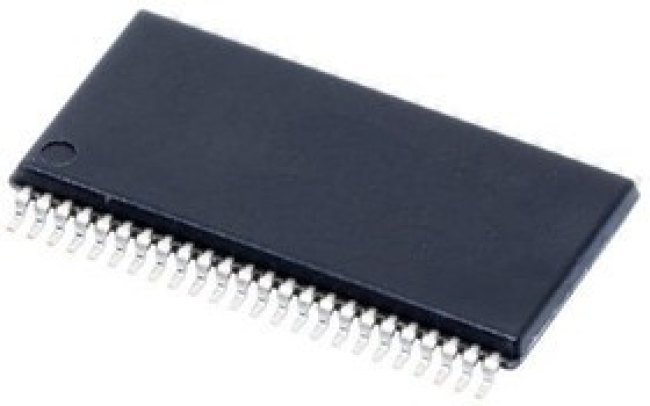

SN74LVCH16244ADGGR, Buffers & Line Drivers Tri-State 16-Bit
Оставить отзыв
В избранноеВ сравнение
Артикул: SN74LVCH16244ADGGR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Logic ICs\Buffers & Line DriversBuffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin TSSOP T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 29.05.2024 |
| Время загрузки | 20:30:59 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| absolute propagation delay time (ns) | 10.03.2024 |
| automotive | No |
| bus hold | YES |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2000 |
| function: | Buffer/Line Driver |
| high level output current: | -24 mA |
| ic type | Buffer & Line Driver IC |
| input signal type | Single-Ended |
| input signal type: | Single-Ended |
| input type | Single Ended |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| logic family | LVC |
| logic family: | LVC |
| logic function | Buffer/Line Driver |
| logic type: | CMOS |
| low level output current: | 24 mA |
| manufacturer: | Texas Instruments |
| maximum high level output current | -24mA |
| maximum high level output current (ma) | -24 |
| maximum low level output current | 24mA |
| maximum low level output current (ma) | 24 |
| maximum operating supply voltage | 3.6 V |
| maximum operating supply voltage (v) | 03.06.2024 |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum propagation delay time @ maximum cl | 6.6 ns@ 30 pF |
| maximum propagation delay time @ maximum cl (ns) | 4.7@2.7V|4.1@3.3V |
| maximum quiescent current (ua) | 20 |
| minimum operating supply voltage | 1.65 V |
| minimum operating supply voltage (v) | 1.65 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 16 |
| number of channels per chip | 16 |
| number of elements per chip | 4 |
| number of inputs per chip | 16 |
| number of input enables per chip | 0 |
| number of input lines: | 16 Input |
| number of outputs per chip | 16 |
| number of output enables per chip | 4 Low |
| number of output lines: | 3 Output |
| operating supply current: | 20 uA |
| operating supply voltage: | 1.65 V to 3.6 V |
| output type | 3-State |
| output type: | 3-State |
| package / case: | TSSOP-48 |
| package type | TSSOP |
| packaging | Tape and Reel |
| партномер | 8005011408 |
| part status | active |
| pcb changed | 48 |
| pin count | 48 |
| polarity | Non-Inverting |
| polarity: | Non-Inverting |
| ppap | No |
| process technology | CMOS |
| product category: | Buffers & Line Drivers |
| product type: | Buffers & Line Drivers |
| propagation delay test condition | 30pF |
| propagation delay test condition (pf) | 50 |
| propagation delay time: | 4.7 ns at 2.7 V, 4.1 ns at 3.3 V |
| quiescent current: | 20 uA |
| series: | SN74LVCH16244A |
| standard package name | SOP |
| subcategory: | Logic ICs |
| supplier package | TSSOP |
| supplier temperature grade | Commercial |
| supply current - max: | 20 uA |
| supply voltage - max: | 3.6 V |
| supply voltage - min: | 1.65 V |
| technology: | CMOS |
| tolerant i/os (v) | 5 |
| typical operating supply voltage (v) | 1.8|2.5|3.3 |
| вес, г | 0.319 |
