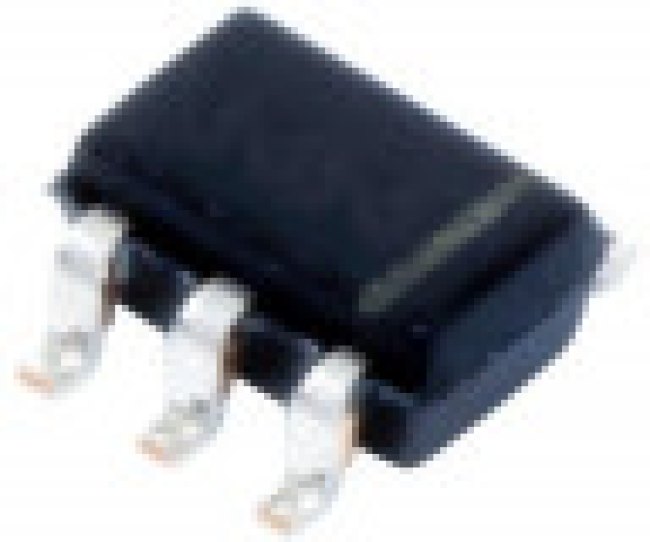

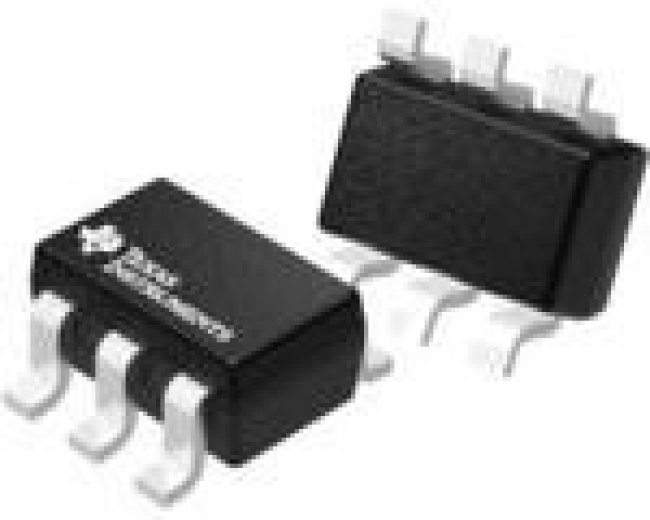

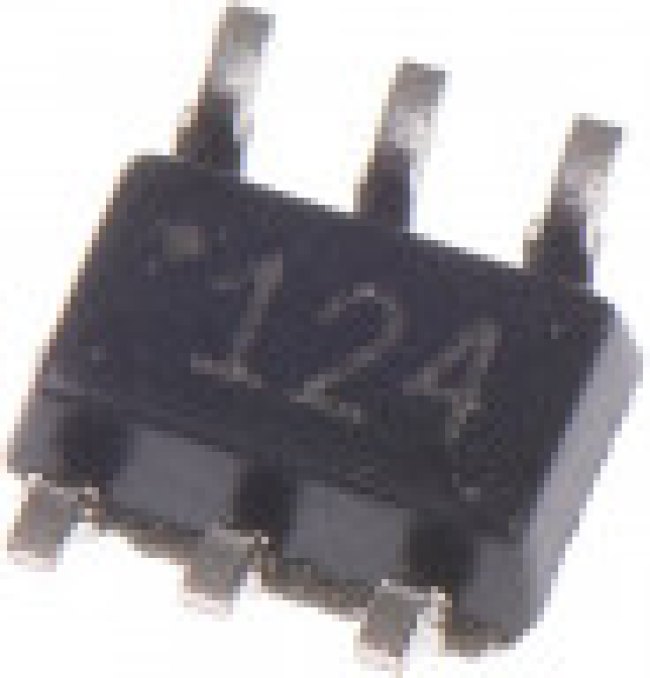

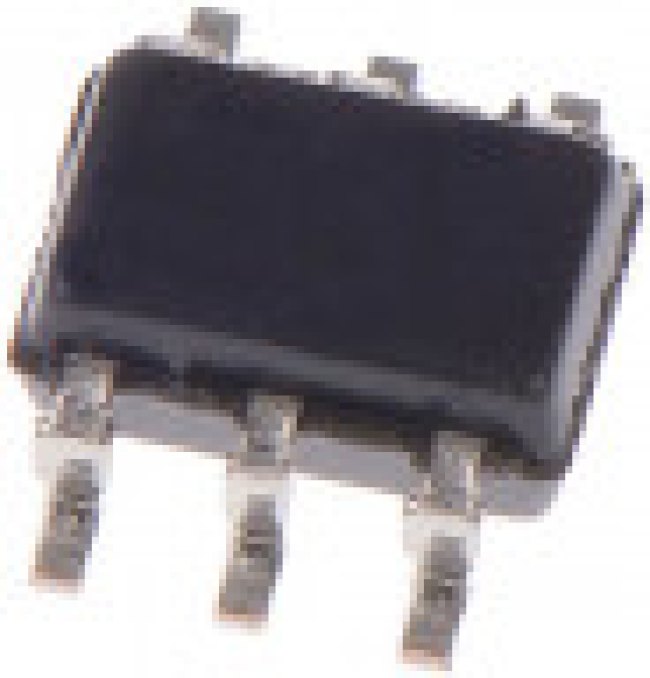

SN74LVC2G17DCKT, Push Pull SchmItt TrIgger 32mA 1.65V~5.5V 32mA -40°C~+125°C SC-70-6 Buffer/DrIver/TransceIver ROHS
Оставить отзыв
В избранноеВ сравнение
Артикул: SN74LVC2G17DCKT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Low-Voltage CMOS logic Single gate package Operating Voltage: 1.65 to 5.5 V Compatibility: Input LVTTL/TTL, Output LVCMOSundefined
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 29.05.2024 |
| Время загрузки | 20:33:39 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| absolute propagation delay time (ns) | 09.03.2024 |
| automotive | No |
| bus hold | NO |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity | 3000 |
| factory pack quantity: factory pack quantity: | 750 |
| function | Schmitt Trigger Buffer |
| function: | Schmitt Trigger Buffer |
| height | 0.9 mm |
| high level output current | -32 mA |
| high level output current: | -32 mA |
| input signal type | Single-Ended |
| input signal type: | Single-Ended |
| input type | Single Ended |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| length | 2 mm |
| logic family | LVC |
| logic family: | LVC |
| logic function | Schmitt Trigger Buffer |
| logic type | ИСТИНА |
| logic type: | ИСТИНА |
| low level output current | 32 mA |
| low level output current: | 32 mA |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum high level output current | -32mA |
| maximum high level output current (ma) | -32 |
| maximum low level output current | 32mA |
| maximum low level output current (ma) | 32 |
| maximum operating supply voltage | 5.5 V |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum propagation delay time @ maximum cl | 5.4 ns @ 3.3 V |
| maximum propagation delay time @ maximum cl (ns) | 4.3 5V|5.4 3.3V |
| maximum quiescent current (ua) | 10 |
| minimum operating supply voltage | 1.65 V |
| minimum operating supply voltage (v) | 1.65 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 2 |
| number of channels: | 2 |
| number of channels per chip | 2 |
| number of elements per chip | 2 |
| number of inputs per chip | 2 |
| number of input enables per chip | 0 |
| number of input lines | 2 Input |
| number of input lines: | 2 Input |
| number of outputs per chip | 2 |
| number of output enables per chip | 0 |
| number of output lines | 2 Output |
| number of output lines: | 2 Output |
| operating supply current: | 10 uA |
| operating supply voltage | 1.65 V to 5.5 V |
| operating supply voltage: | 1.8 V |
| operating temperature range | -40 C to+125 C |
| output type | Push-Pull |
| package / case | SC-70-6 |
| package / case: | SC70-6 |
| package type | SC-70 |
| packaging | Tape and Reel |
| партномер | 8017654778 |
| part status | active |
| pcb changed | 6 |
| pin count | 6 |
| polarity | Non-Inverting |
| polarity: | Non-Inverting |
| ppap | No |
| process technology | CMOS |
| product category | Buffers Line Drivers |
| product category: | Buffers & Line Drivers |
| product type: | Buffers & Line Drivers |
| propagation delay test condition | 50pF |
| propagation delay test condition (pf) | 50 |
| propagation delay time | 5.4 ns at 3.3 V, 4.3 ns at 5 V |
| propagation delay time: | 5.4 ns at 3.3 V, 4.3 ns at 5 V |
| quiescent current | 10 uA |
| quiescent current: | 10 uA |
| rohs | Details |
| schmitt trigger input | Yes |
| series | SN74LVC2G17 |
| series: | SN74LVC2G17 |
| standard package name | SOT |
| subcategory: | Logic ICs |
| supplier package | SC-70 |
| supply current - max | 10 uA |
| supply current - max: | 10 uA |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 1.65 V |
| supply voltage - min: | 1.65 V |
| technology | CMOS |
| technology: | CMOS |
| tolerant i/os (v) | 5 |
| typical operating supply voltage (v) | 1.8|2.5|3.3|5 |
| unit weight | 0.000088 oz |
| вес, г | 0.03 |
| width | 1.25 mm |
