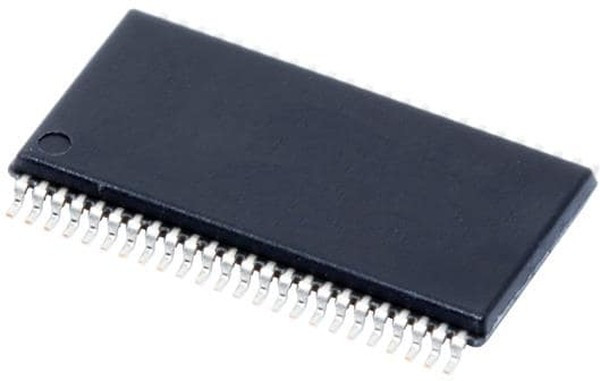

SN74LVC162244ADGGR, Буфер / драйвер, неинвертирующий, 3 состояния, 1.65В до 3.6В, TSSOP-48

Полупроводники - Микросхемы\Логика\Буферы, Приемопередатчики и Линейные ДрайверыThe SN74LVC162244ADGGR is a 16-bit Buffer/Driver with 3-state outputs. It is also designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers and bus-oriented receivers and transmitters. The device can be used as four 4-bit buffers, two 8-bit buffers or one 16-bit buffer. It provides true outputs and symmetrical active-low output-enable (OE) inputs. Inputs can be driven from either 3.3/5V devices. This feature allows the use of this device as a translator in a mixed 3.3/5V system environment. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver. • IOFF Supports live insertion, partial power down mode and back drive protection• Latch-up performance exceeds 250mA per JESD 17• Inputs accept voltages to 5.5V• 4.4ns at 3.3V Propagation delay (tpd)• <0.8V at VCC = 3.3V, TA = 25°C VOLP (output ground bounce)• >2V at VCC = 3.3V, TA = 25°C VOHV (output VOH undershoot)• Green product and no Sb/Br
