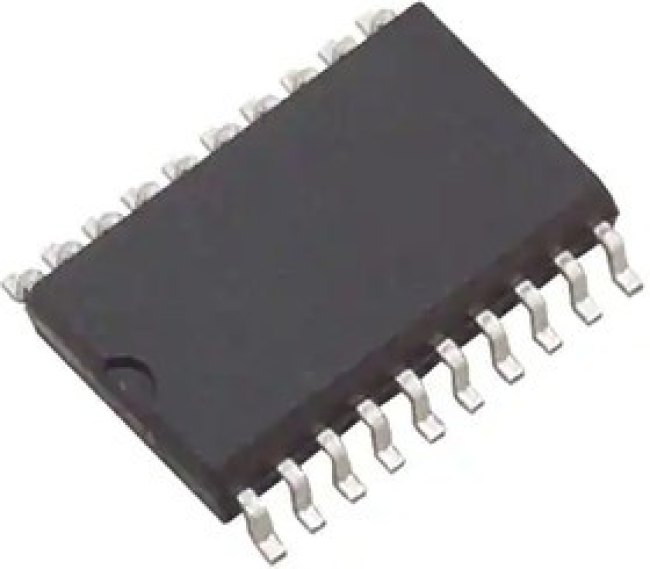

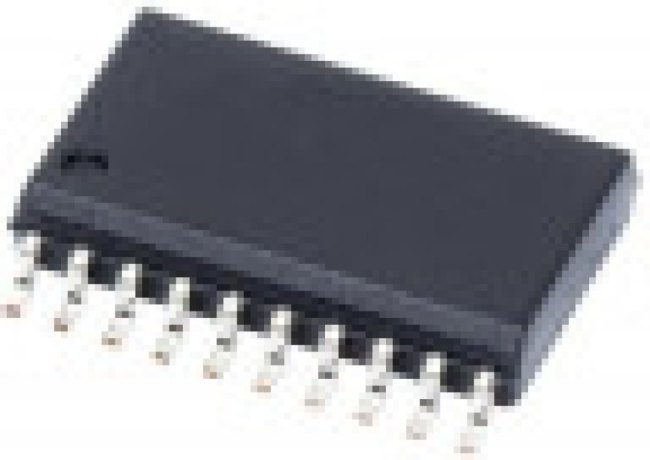

SN74LV541ADW
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементBuffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin SOIC Tube - Rail/Tube (Alt: SN74LV541ADW)
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 29.05.2024 |
| Время загрузки | 20:50:23 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| base product number | 74LV541 -> |
| current - output high, low | 16mA, 16mA |
| eccn | EAR99 |
| factory pack quantity | 25 |
| factory pack quantity: factory pack quantity: | 25 |
| function | Buffer/Line Driver |
| function: | Buffer/Line Driver |
| height | 2.35 mm |
| high level output current | -16 mA |
| high level output current: | -16 mA |
| htsus | 8542.39.0001 |
| input signal type | Single-Ended |
| input signal type: | Single-Ended |
| категория | Электронные компоненты/Микросхемы |
| length | 12.8 mm |
| logic family | LV |
| logic family: | LV |
| logic type | CMOS |
| logic type: | CMOS |
| low level output current | 16 mA |
| low level output current: | 16 mA |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +125 C |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of bits per element | 8 |
| number of channels | 8 |
| number of channels: | 8 |
| number of elements | 1 |
| number of input lines | 8 Input |
| number of input lines: | 8 Input |
| number of output lines | 8 Output |
| number of output lines: | 8 Output |
| operating supply current | 20 uA |
| operating supply current: | 20 uA |
| operating supply voltage | 2.5 V |
| operating supply voltage: | 2.5 V |
| operating temperature | -40В°C ~ 125В°C (TA) |
| operating temperature range | -40 C to+85 C |
| output type | 3-State |
| output type: | 3-State |
| package | Tube |
| package / case | SOIC-20 |
| package / case: | SOIC-20 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8002948815 |
| polarity | Non-Inverting |
| polarity: | Non-Inverting |
| product category | Buffers Line Drivers |
| product category: | Buffers & Line Drivers |
| product type: | Buffers & Line Drivers |
| propagation delay time | 15.9 ns at 2.5 V, 10.5 ns at 3.3 V, 7 ns at 5 V |
| propagation delay time: | 15.9 ns at 2.5 V, 10.5 ns at 3.3 V, 7 ns at 5 V |
| quiescent current | 20 uA |
| quiescent current: | 20 uA |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | SN74LV541A |
| series: | SN74LV541A |
| subcategory: | Logic ICs |
| supplier device package | 20-SOIC |
| supply current - max | 20 uA |
| supply current - max: | 20 uA |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 2 V |
| supply voltage - min: | 2 V |
| technology | CMOS |
| technology: | CMOS |
| unit weight | 0.017662 oz |
| вес, г | 0.4 |
| voltage - supply | 2V ~ 5.5V |
| width | 7.52 mm |
