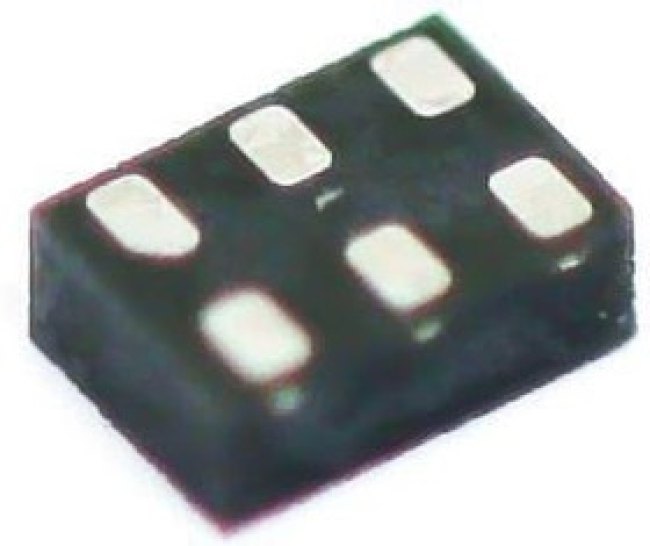

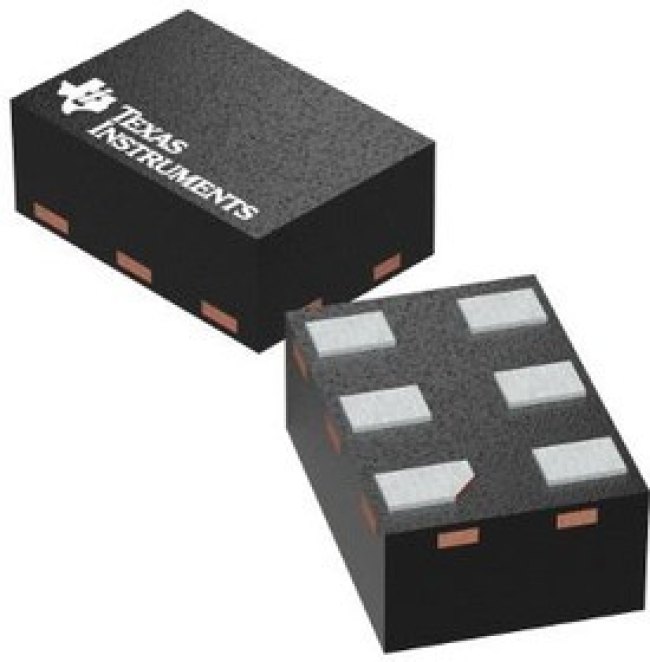

SN74AUP1G126DRYR
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Буфер, неинвертирующий 1 элемент 1 бит на элемент Выход с 3 состояниями 6-SON (1.45x1)
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 29.05.2024 |
| Время загрузки | 20:30:01 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| absolute propagation delay time (ns) | 25.05.2024 |
| base product number | 74AUP1G126 -> |
| bus hold | NO |
| current - output high, low | 4mA, 4mA |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 5000 |
| high level output current: | -4 mA |
| htsus | 8542.39.0001 |
| input signal type | Single-Ended |
| категория | Электронные компоненты/Микросхемы |
| lead shape | no lead |
| logic family | AUP |
| logic family: | AUP |
| logic function | Buffer/Line Driver |
| logic type | Buffer, Non-Inverting |
| logic type: | CMOS |
| low level output current: | 4 mA |
| manufacturer: | Texas Instruments |
| maximum high level output current (ma) | -4 |
| maximum low level output current (ma) | 4 |
| maximum operating supply voltage (v) | 03.06.2024 |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum propagation delay time @ maximum cl (ns) | 18.7@1.2V|10.1@1.8V|12.5@1.5V|6@3.3V|7.2@2.5V |
| maximum quiescent current (ua) | 0.5 |
| minimum operating supply voltage (v) | 0.8 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of bits per element | 1 |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of elements | 1 |
| number of elements per chip | 1 |
| number of inputs per chip | 1 |
| number of input enables per chip | 0 |
| number of input lines: | 1 Input |
| number of outputs per chip | 1 |
| number of output enables per chip | 1 HIGH |
| number of output lines: | 1 Output |
| operating supply current: | 900 nA |
| operating temperature | -40В°C ~ 85В°C (TA) |
| output type | 3-State |
| output type: | 3-State |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | 6-UFDFN |
| package / case: | SON-6 |
| package height | 0.55(Max) |
| package length | 1.5(Max) |
| package width | 1.05(Max) |
| packaging | Tape and Reel |
| партномер | 8022851210 |
| part status | active |
| pcb changed | 6 |
| pin count | 6 |
| polarity | Non-Inverting |
| polarity: | Non-Inverting |
| process technology | CMOS |
| product category: | Buffers & Line Drivers |
| product type: | Buffers & Line Drivers |
| propagation delay test condition (pf) | 30 |
| propagation delay time: | 18.7 ns |
| quiescent current: | 500 nA |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series | 74AUP -> |
| series: | SN74AUP1G126 |
| standard package name | SON |
| subcategory: | Logic ICs |
| supplier device package | 6-SON (1.45x1) |
| supplier package | USON |
| supply voltage - max: | 3.6 V |
| supply voltage - min: | 800 mV |
| tolerant i/os (v) | 03.06.2024 |
| typical operating supply voltage (v) | 3.3|2.5|1.8 |
| voltage - supply | 0.8V ~ 3.6V |
