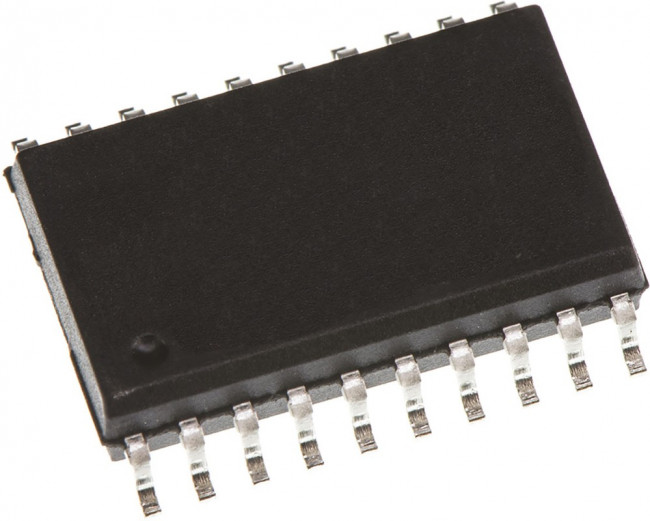

MM74HCT245WMX, Bus Transceivers Octal 3-STATE Trans
Оставить отзыв
В избранноеВ сравнение
Артикул: MM74HCT245WMX
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Logic ICs\Bus TransceiversBus XCVR Single 8-CH 3-ST 20-Pin SOIC W T/R
| Информация о производителе | |
| Производитель | ON Semiconductor*** |
| Основные | |
| Дата загрузки | 29.05.2024 |
| Время загрузки | 21:49:56 |
| Бренд | ON Semiconductor*** |
| Вес и габариты | |
| absolute propagation delay time (ns) | 53 |
| automotive | No |
| bus hold | NO |
| data flow direction | Bi-Directional |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 1000 |
| function: | Octal 3-STATE Trans |
| high level output current | -7.2(mA) |
| high level output current: | -7.2 mA |
| input level | TTL |
| input level: | TTL |
| input logic level | TTL |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| logical function | Bus Transceiver |
| logic family | HCT |
| logic family: | 74HCT |
| logic function | Bus Transceiver |
| low level output current | 7.2(mA) |
| low level output current: | 7.2 mA |
| manufacturer: | onsemi |
| maximum high level output current | -35mA |
| maximum high level output current (ma) | -7.2 |
| maximum low level output current | 35mA |
| maximum low level output current (ma) | 07.02.2024 |
| maximum operating supply voltage | 5.5 V |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature | +85 °C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum power dissipation (mw) | 500 |
| maximum propagation delay time @ maximum cl | 45ns |
| maximum propagation delay time @ maximum cl (ns) | 30 5V |
| maximum quiescent current (ua) | 1000 |
| minimum operating supply voltage | 4.5 V |
| minimum operating supply voltage (v) | 04.05.2024 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 8 |
| number of channels: | 8 |
| number of channels per chip | 8 |
| number of circuits: | 8 |
| number of direction control inputs | 1 Low/High |
| number of elements | 1 |
| number of elements per chip | 1 |
| number of input enables per element | 0 |
| number of output enables per element | 1 Low |
| number of selection inputs per element | 0 |
| operating supply voltage: | 4.5 V to 5.5 V |
| operating supply voltage (max) | 5.5(V) |
| operating supply voltage (min) | 4.5(V) |
| operating supply voltage (typ) | 5(V) |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output level | CMOS |
| output level: | CMOS |
| output logic level | CMOS |
| output type | 3-State |
| output type: | 3-State |
| package / case: | SOIC-20 |
| package type | SOIC |
| packaging | Tape and Reel |
| партномер | 8004835481 |
| part # aliases: | MM74HCT245WMX_NL |
| part status | active |
| pcb changed | 20 |
| pd - power dissipation: | 500 mW(1/2 W) |
| pin count | 20 |
| polarity | Non-Inverting |
| polarity: | Non-Inverting |
| ppap | No |
| process technology | CMOS |
| product: | CMOS |
| product category: | Bus Transceivers |
| product type: | Bus Transceivers |
| propagation delay test condition | 150pF |
| propagation delay test condition (pf) | 150 |
| propagation delay time | 30@5V(ns) |
| propagation delay time: | 30 ns |
| quiescent current | 1000(uA) |
| quiescent current: | 600 uA |
| quiescent current (typ) | 600(uA) |
| rad hardened | No |
| series: | MM74HCT245 |
| standard package name | SOP |
| subcategory: | Logic ICs |
| supplier package | SOIC W |
| supply current - max: | 1 mA |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 4.5 V |
| technology | CMOS |
| technology: | CMOS |
| typical quiescent current (ua) | 600 |
| вес, г | 0.8 |
| width | 7.595mm |
