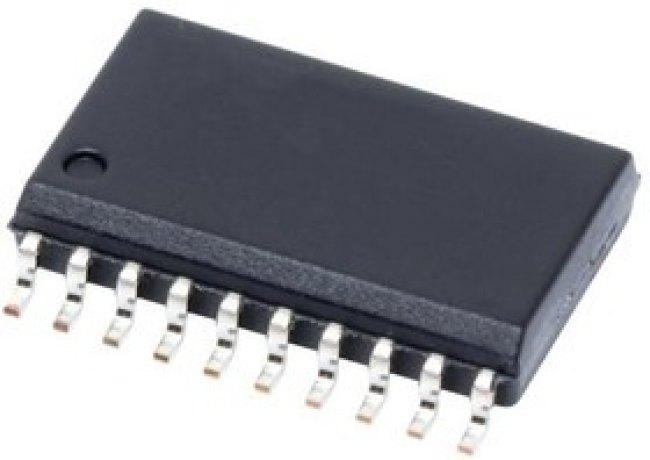

CD74HC241M, Buffers & Line Drivers Hi-Sp CMOS Octal Bfr/Ln Drv W/3St Otp
Оставить отзыв
В избранноеВ сравнение
Артикул: CD74HC241M
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Logic ICs\Buffers & Line DriversCD74HC241 High Speed CMOS Logic Non-Inverting Octal Buffers/Line Drivers with 3-State Outputs
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 29.05.2024 |
| Время загрузки | 20:31:59 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| bus hold | NO |
| factory pack quantity | 25 |
| factory pack quantity: factory pack quantity: | 25 |
| function | Buffer/Line Driver |
| function: | Buffer/Line Driver |
| height | 2.35 mm |
| high level output current | -7.8 mA |
| high level output current: | -7.8 mA |
| input signal type | Single-Ended |
| input signal type: | Single-Ended |
| категория | Электронные компоненты/Микросхемы |
| length | 12.8 mm |
| logical function | Buffer/Line Driver |
| logic family | HC |
| logic family: | HC |
| logic type | CMOS |
| logic type: | CMOS |
| low level output current | 7.8 mA |
| low level output current: | 7.8 mA |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| minimum operating temperature | -55 C |
| minimum operating temperature: | -55 C |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 8 |
| number of channels: | 8 |
| number of elements | 2 |
| number of inputs | 8 |
| number of input enables per chip | 0 |
| number of input lines | 8 Input |
| number of input lines: | 8 Input |
| number of outputs | 8 |
| number of output enables per chip | 1LOW/1HIGH |
| number of output lines | 8 Output |
| number of output lines: | 8 Output |
| operating supply current | 80 uA |
| operating supply current: | 80 uA |
| operating supply voltage | 2 V to 6 V |
| operating supply voltage: | 2 V to 6 V |
| operating supply voltage (max) | 6(V) |
| operating supply voltage (min) | 2(V) |
| operating supply voltage (typ) | 2.5/3.3/5(V) |
| operating temperature classification | Military |
| operating temperature range | -55 C to+125 C |
| operating temp range | -55C to 125C |
| output type | 3-State |
| output type: | 3-State |
| package / case | SOIC-20 |
| package / case: | SOIC-20 |
| package type | SOIC |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004996434 |
| pin count | 20 |
| polarity | Non-Inverting |
| polarity: | Non-Inverting |
| product category | Buffers Line Drivers |
| product category: | Buffers & Line Drivers |
| product type: | Buffers & Line Drivers |
| propagation delay time | 110 ns at 2 V, 22 ns at 4.5 V, 19 ns at 6 V |
| propagation delay time: | 110 ns at 2 V, 22 ns at 4.5 V, 19 ns at 6 V |
| quiescent current | 8 uA |
| quiescent current: | 8 uA |
| rad hardened | No |
| rohs | Details |
| series | CD74HC241 |
| series: | CD74HC241 |
| subcategory: | Logic ICs |
| supply current - max | 8 uA |
| supply current - max: | 8 uA |
| supply voltage - max | 6 V |
| supply voltage - max: | 6 V |
| supply voltage - min | 2 V |
| supply voltage - min: | 2 V |
| technology | CMOS |
| technology: | CMOS |
| unit weight | 0.017662 oz |
| вес, г | 0.5 |
| width | 7.52 mm |
