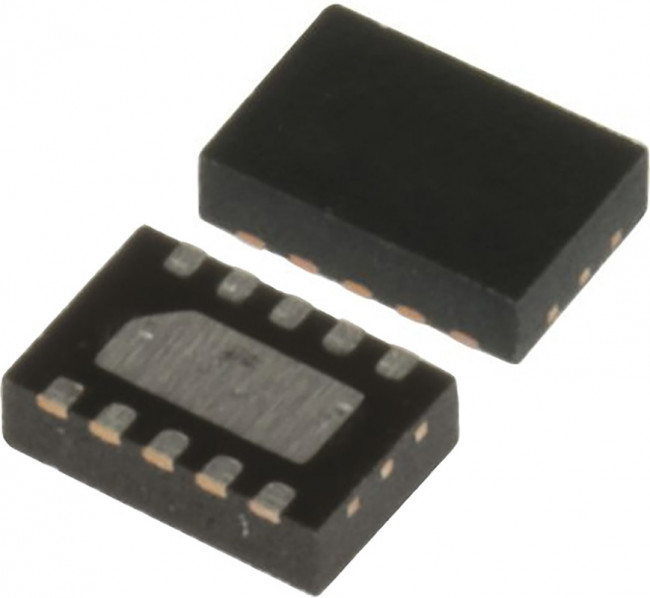

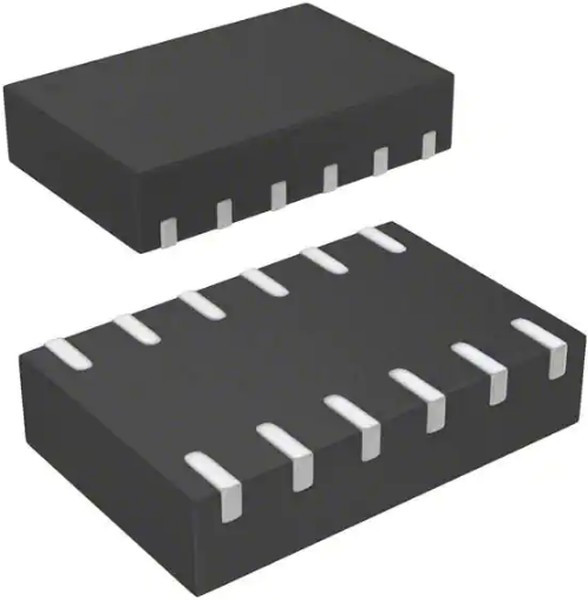

STM6601CM2DDM6F, Supervisory Circuits Smart Push-Button Power On Lock Out
Оставить отзыв
В избранноеВ сравнение
Артикул: STM6601CM2DDM6F
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Operating voltage 1.6 V to 5.5 V Low standby current of 0.6 μA Adjustable Smart Reset™ assertion delay time driven by external CSRD
Информация о производителе | |
Производитель | STMicroelectronics |
Основные | |
Дата загрузки | 30.04.2024 |
Время загрузки | 20:39:51 |
Бренд | STMicroelectronics |
Вес и габариты | |
automotive | No |
battery backup switching | No Backup |
chip enable signals | Yes |
eccn (us) | EAR99 |
factory pack quantity | 3000 |
категория | Электронные компоненты/Микросхемы |
manual reset | Manual Reset |
manufacturer | STMicroelectronics |
maximum operating supply voltage | 5.5 V |
maximum operating supply voltage (v) | 05.05.2024 |
maximum operating temperature | +85 C |
maximum operating temperature (°c) | 85 |
maximum reset threshold voltage | 3.1V |
maximum reset threshold voltage (v) | 03.02.2024 |
maximum supply current (ua) | 8 |
minimum operating supply voltage | 1.6 V |
minimum operating supply voltage (v) | 01.06.2024 |
minimum operating temperature | -40 C |
minimum operating temperature (°c) | -40 |
minimum reset threshold voltage (v) | 3 |
monitored voltage (v) | 1.6 to 5.5 |
mounting | Surface Mount |
mounting style | SMD/SMT |
mounting type | Surface Mount |
number of inputs monitored | 1 Input |
number of supervisors | 1 |
operating supply current | 6 uA |
output driver | Active High/Open Drain |
output type | Open Collector/Drain |
overvoltage threshold | 3.2 V |
package / case | TDFN-12 |
package type | TDFN |
packaging | Reel |
партномер | 8006397259 |
part status | Active |
pcb changed | 12 |
pin count | 12 |
power fail detection | Yes |
ppap | No |
product category | Supervisory Circuits |
rohs | Details |
series | STM6601 |
standard package name | DFN |
supplier package | TDFN |
supplier temperature grade | Industrial |
supply voltage - max | 5.5 V |
supply voltage - min | 1.65 V |
threshold voltage | 3.1 V |
type | Voltage Supervisory |
typical reset threshold voltage (v) | 03.01.2024 |
undervoltage threshold | 3 V |
watchdog timer | No |
watchdog timers | No Watchdog |
