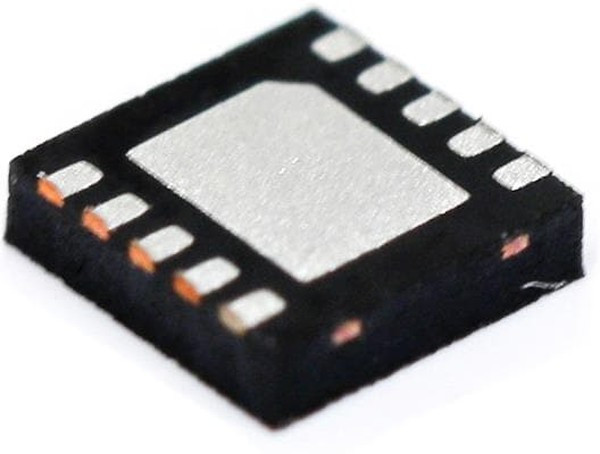

LTC4151IDD#PBF, Current Sense Amplifier, 1 Amplifier, 7V to 80 Vin, DFN-EP-10, -40 to85 °C
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Полупроводники - Микросхемы\Усилители и Компараторы\Усилители ТокаLTC4151 is a high side power monitor that operates over a wide voltage range of 7V to 80V. In default operation mode, the on-board 12-bit ADC continuously measures high side current, input voltage and an external voltage. Data is reported through the I2C interface when polled by a host. The LTC4151 can also perform on-demand measurement in a snapshot mode. The LTC4151 features a dedicated shutdown pin to reduce power consumption. Typical applications include -48V telecom infrastructure, automotive, industrial and consumer.
• 12bit resolution for both current and voltages• I2C interface• Additional ADC input monitors an external voltage• Continuous scan and snapshot modes• Shutdown mode (LTC4151) reduces quiescent current to 120µA• 10-lead (3mm × 3mm) plastic DFN package• Temperature range from -40°C to 85°C
