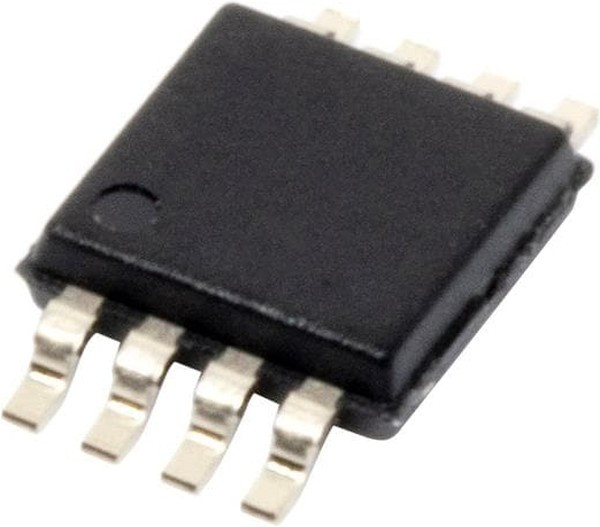

ЭлектроэлементANALOG DEVICES AD8214ARMZ Fan-Failure Detector with Integrated Power Switch, 5V-65Vin, MSOP-8
Информация о производителе | |
Производитель | Analog Devices |
Основные | |
Дата загрузки | 30.04.2024 |
Время загрузки | 20:40:37 |
Бренд | Analog Devices |
Вес и габариты | |
amplifier type: | Current Shunt Threshold Detector |
base product number | AD8214 -> |
category | Integrated Circuits(ICs) |
cmrr - common mode rejection ratio: | 80 dB |
common mode rejection ratio | 80 dB |
contact plating | Tin |
current - output | 1mA |
description/function: | High CMV threshold detector |
eccn | EAR99 |
factory pack quantity: factory pack quantity: | 50 |
family | PMIC-Current Regulation/Management |
function | Current Monitor |
htsus | 8542.39.0001 |
ib - input bias current: | 12 nA |
input bias current | 12 nA |
категория | Электронные компоненты/Микросхемы |
manufacturer: | Analog Devices Inc. |
maximum operating temperature: | +125 C |
minimum operating temperature: | -40 C |
moisture sensitivity level (msl) | 1 (Unlimited) |
mounting style: | SMD/SMT |
mounting type | Surface Mount |
number of channels | 1 |
number of channels: | 1 Channel |
number of elements | 1 |
number of pins | 8 |
online catalog | Current Monitor |
operating supply current | 1.2 mA |
operating supply current: | 1.2 mA |
operating temperature | -40°C ~ 125°C |
output current | 1 mA |
output current per channel | 1 mA |
output current per channel: | 1 mA |
output voltage: | 2 V to 62.5 V |
package | Tube |
package / case | 8-TSSOP, 8-MSOP(0.118", 3.00mm Width) |
package / case: | MSOP-8 |
packaging | Tube |
packaging: | Tube |
партномер | 8004120440 |
product: | Current Sense Amplifiers |
product category: | Current Sense Amplifiers |
product training modules | Current Sense Amplifiers |
product type: | Current Sense Amplifiers |
reach status | REACH Unaffected |
rohs status | ROHS3 Compliant |
sensing method | High-Side |
series: | AD8214 |
standard package | 50 |
subcategory: | Amplifier ICs |
supplier device package | 8-MSOP |
supply type: | Single |
supply voltage - max: | 65 V |
supply voltage - min: | 5 V |
termination | SMD/SMT |
threshold voltage | 2.4 V |
topology: | Current Shunt Feedback |
vcm - common mode voltage: | 5 V to 65 V |
video file | Introducing Power by Linear |
voltage - input | 5 V ~ 65 V |
vos - input offset voltage: | 3 mV |
