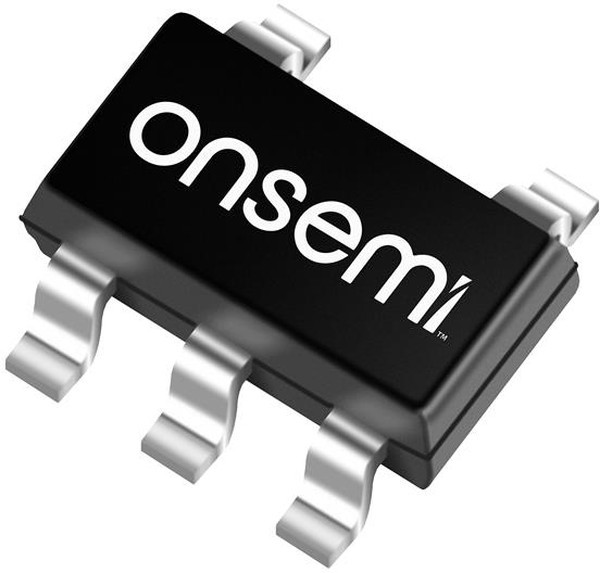

TL331VSN4T3G, Comparator Single ±18V/36V Automotive AEC-Q100 5-Pin TSOP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул:TL331VSN4T3G
Обзор
Характеристики
Отзывы (0)
Реквизиты
The TL331 is an open collector, low−power voltage comparator designed specifically to operate over a wide supply range from 2 V to 36 V single supply and ±1 V to ±18 V for split supplies.
Информация о производителе
Производитель
ON Semiconductor***
Основные
Дата загрузки
09.07.2023
Время загрузки
14:44:25
Бренд
ON Semiconductor***
Вес и габариты
automotive standard
AEC-Q100
comparator type
Low Power
factory pack quantity: factory pack quantity:
3000
ib - input bias current:
25 nA
ios - input offset current:
5 nA
категория
Электронные компоненты/Микросхемы
manufacturer:
onsemi
maximum operating temperature
+150 °C
maximum operating temperature:
+125 C
minimum operating temperature:
-40 C
mounting style:
SMD/SMT
mounting type
Surface Mount
number of channels:
1 Channel
number of channels per chip
1
operating supply current:
500 uA
output current per channel:
16 mA
output type
CMOS, DTL, ECL, TTL
output type:
Open Collector
package / case:
TSOP-5
package type
TSOP
packaging:
Reel, Cut Tape, MouseReel
партномер
8002313148
pin count
5
power supply type
Dual, Single
product:
Analog Comparators
product category:
Analog Comparators
product type:
Analog Comparators
propagation delay time:
300 ns
qualification:
AEC-Q100
response time:
850 ns
series:
TL331
shutdown:
No Shutdown
subcategory:
Amplifier ICs
supply voltage - max:
36 V
supply voltage - min:
2 V
тип компаратора
Низкая Мощность
typical dual supply voltage
±1 →±18V
typical single supply voltage
2 → 36 V
typical voltage gain
200 V/mV
vos - input offset voltage:
1 mV
width
1.65mm
