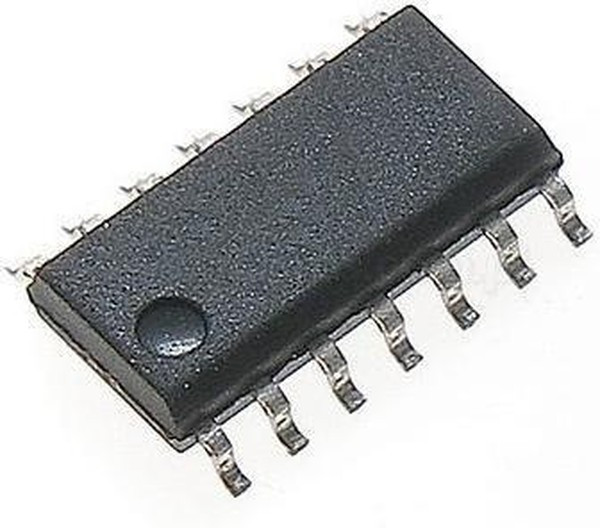

LM239ADT, Компаратор счетверенный низкое энергопотребление
Оставить отзыв
В избранноеВ сравнение
Артикул: LM239ADT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Микросхемы / Усилители и компараторы / КомпараторыКомпаратор счетверенный низкое энергопотребление
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 09.07.2023 |
| Время загрузки | 14:50:58 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| automotive | No |
| base product number | LM239 -> |
| current - input bias (max) | 0.1ВµA @ 5V |
| current - output (typ) | 16mA @ 5V |
| current - quiescent (max) | 2mA |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity | 2500 |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product | - |
| htsus | 8542.39.0001 |
| ib - input bias current | 100 nA |
| ib - input bias current: | 100 nA |
| ios - input offset current | 150 nA |
| ios - input offset current: | 150 nA |
| iq per channel (typ) | 2mA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer | STMicroelectronics |
| manufacturer: | STMicroelectronics |
| manufacturer type | Voltage Comparator |
| maximum dual supply voltage (v) | ±16 |
| maximum input bias current (ua) | 0.1@5V |
| maximum input offset voltage (mv) | 2@30V |
| maximum operating supply voltage (v) | ±16|32 |
| maximum operating temperature | 105В°C |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum quiescent current (ma) | 2@5V |
| maximum single supply voltage (v) | 32 |
| minimum dual supply voltage | 1 V |
| minimum dual supply voltage: | 1 V |
| minimum operating temperature | -40В°C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 2 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| number of elements | 4 |
| operating supply current | 2 mA |
| operating supply current: | 2 mA |
| operating supply voltage | 36 V |
| operating supply voltage: | 36 V |
| operating temperature | -40В°C ~ 105В°C |
| output current per channel | 4 mA |
| output current per channel: | 4 mA |
| output type | CMOS, DTL, ECL, MOS, Open-Collector, TTL |
| output type: | CMOS, DTL, ECL, MOS, TTL |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | 14-SOIC (0.154"", 3.90mm Width) |
| package / case: | SOIC-14 |
| packaging | Reel |
| packaging: | Reel, Cut Tape, MouseReel |
| партномер | 8000253024 |
| part status | active |
| pcb changed | 14 |
| pd - power dissipation | 830 mW |
| pd - power dissipation: | 830 mW |
| pin count | 14 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | Bipolar |
| product | Analog Comparators |
| product: | Analog Comparators |
| product category | Analog Comparators |
| product category: | Analog Comparators |
| product type: | Analog Comparators |
| rail to rail | No |
| reach status | REACH Unaffected |
| reference voltage | No |
| reference voltage: | No |
| response time | 1.3 us |
| response time: | 1.3 us |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | LM239 |
| series: | LM239 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier device package | 14-SO |
| supplier package | SOIC |
| supply voltage - max | 32V, В±1V |
| supply voltage - max: | 32 V |
| supply voltage - min | 2V |
| supply voltage - min: | 2 V |
| type | General Purpose |
| typical output current (ma) | 16@5V |
| typical response time (us) | 01.03.2023 |
| typical voltage gain (db) | 106.02 |
| vcm - common mode voltage | Negative Rail to Positive Rail-1.5 V |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1.5 V |
| вес, г | 0.3 |
| voltage - input offset (max) | 2mV @ 30V |
| voltage - supply, single/dual (в±) | 2V ~ 32V, В±1V ~ 16V |
| vos - input offset voltage | 2 mV |
| vos - input offset voltage: | 2 mV |
