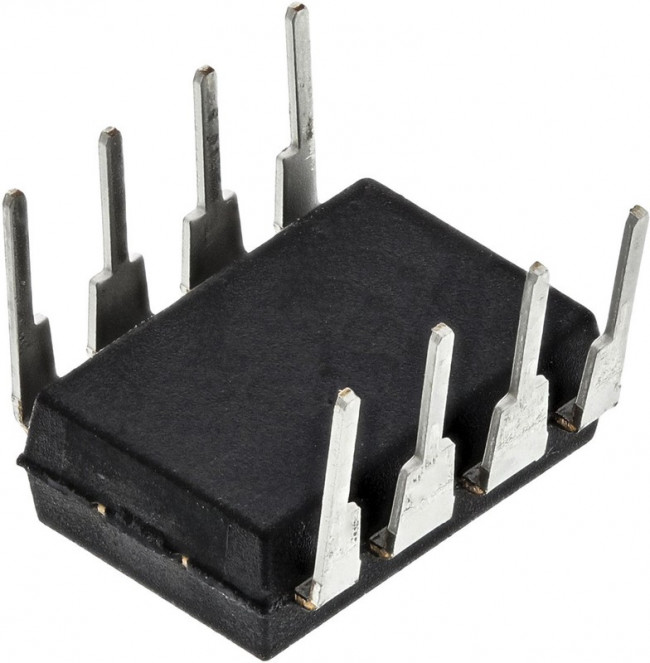

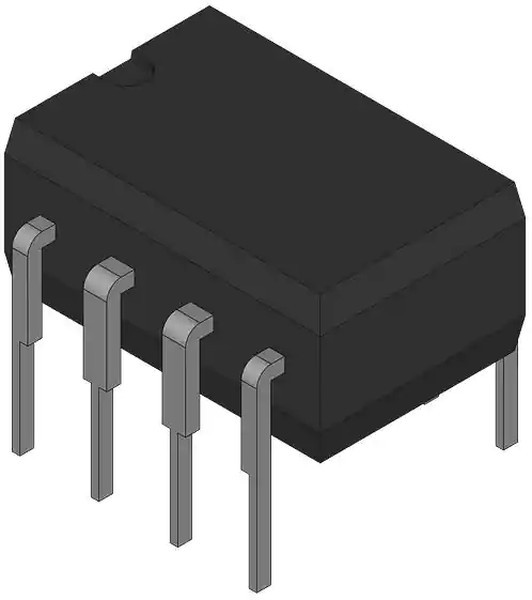

TLE2426CP, Источник опорного напряжения, прецизионный с виртуальным заземлением, TLE2426, 2В до 20В, DIP-8
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Полупроводники - Микросхемы\Микросхемы Управления Питанием\Источники Опорного НапряженияThe TLE2426CP is a 'Rail Splitter' Precision Virtual Ground Voltage Reference for signal-conditioning applications utilizing a single power source. The precision virtual ground whose output voltage is always equal to one-half the input voltage. The unique combination of a high-performance, micropower operational amplifier and a precision trimmed divider on a single silicon chip results in a precise VO/VI ratio of 0.5 while sinking and sourcing current. It provides a low impedance output with 20mA of sink and source capability while drawing less than 280µA of supply current. With the addition of an external capacitor (CNR), peak-to-peak noise is reduced while line ripple rejection is improved. Initial output tolerance for a single 5 or 12V system is better than 1% with 3.6% over the full 40V input range. Ripple rejection exceeds 12 bits of accuracy.
• 1/2 VI virtual ground for analogue systems• 170µA Typical micropower operation (VI = 5V)• Wide VI range (4 to 40V)• High output-current capability (source - 20mA typical, sink - 20mA typical)• Excellent output regulation• Low impedance output (0.0075R typical)• Green product and no Sb/Br
