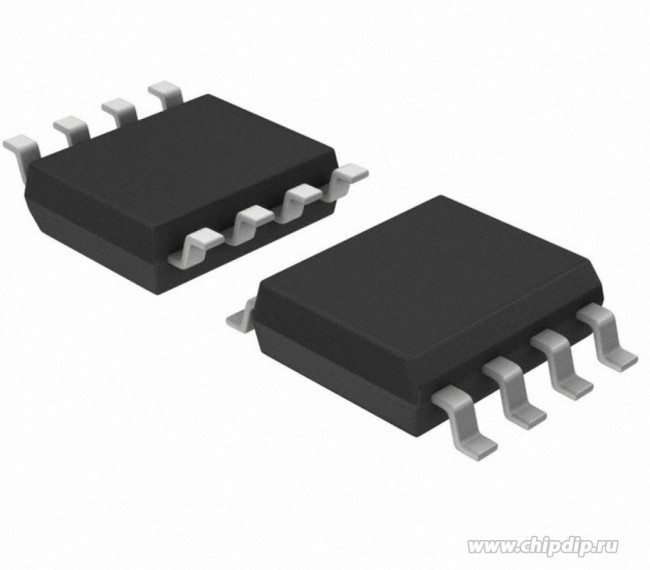

REF195ESZ, Voltage Reference IC, 2ppm/°C, 5V, 0.044%, Series - Fixed, NSOIC-8, -40°C to 85°C

Полупроводники - Микросхемы\Микросхемы Управления Питанием\Источники Опорного НапряженияREF195 is a precision micropower low dropout voltage (LDV) reference. It has a precision band gap voltage reference which uses a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy. It is mainly used in application such as portable instruments, ADCs and DACs, smart sensors, solar powered applications, loop-current-powered instruments. • Nominal output voltage range is 5.00V• High output current is 30mA• Low supply current is 45µA maximum• Sleep mode is 15µA maximum• Low dropout voltage, operating temperature range is -40°C to +85°C• Short-circuit protection• Initial accuracy is 4.998V to 5.002V• Line regulation is 2ppm/V to 4ppm/V (at 25°C)• Load regulation is 2ppm/mA to 4ppm/mA (at 25°C)• Package style is 8-lead NSOIC
