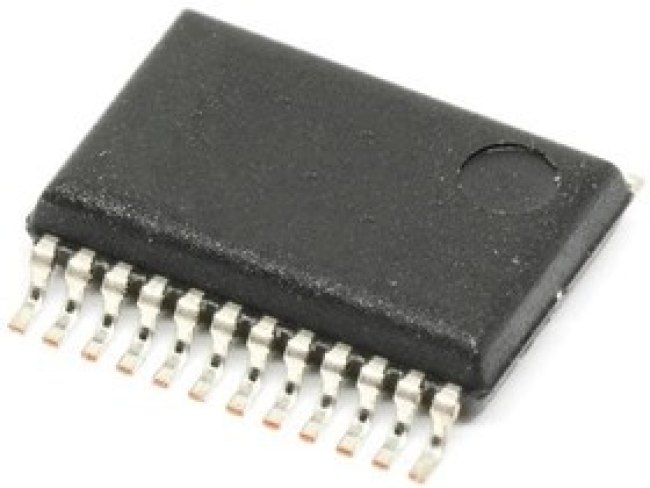

AD7306JRZ, RS-232 Interface IC RS 232/422 INTERFACE DEV.
Оставить отзыв
В избранноеВ сравнение
Артикул: AD7306JRZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Interface ICs\RS-232 Interface ICAnalog Devices Isolation - All
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 29.05.2024 |
| Время загрузки | 13:18:45 |
| Бренд | Analog Devices |
| Вес и габариты | |
| base product number | AD7306 -> |
| data rate: | 100 kb/s |
| duplex | Full |
| duplex: | Full Duplex |
| eccn | EAR99 |
| esd protection: | ESD Protection |
| factory pack quantity: factory pack quantity: | 31 |
| function: | Transceiver |
| htsus | 8542.39.0001 |
| interface standards | EIA-232/EIA-422/RS-232/RS-422 |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Analog Devices Inc. |
| maximum operating temperature | +70 °C |
| maximum operating temperature: | +85 C |
| minimum operating temperature | 0 °C |
| minimum operating temperature: | -40 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of drivers: | 3 Driver |
| number of drivers per line | 1(RS-422), 2(RS-232) |
| number of drivers/receivers | 03.03.2024 |
| number of receivers | 1(RS-422), 2(RS-232) |
| number of receivers: | 2 Receiver |
| number of receivers per line | 1(RS-422), 2(RS-232) |
| number of transceivers | 1(RS-422), 2(RS-232) |
| number of transceivers: | 1 Transceiver |
| number of transmitters | 1(RS-422), 2(RS-232) |
| operating supply current: | 15 mA |
| operating supply voltage: | 5 V |
| operating temperature | 0В°C ~ 70В°C |
| output type: | Single-Ended, Differential |
| package | Tube |
| package / case | 24-SOIC (0.295"", 7.50mm Width) |
| package / case: | SOIC-24 |
| package type | SOIC W |
| packaging: | Tube |
| партномер | 8004966298 |
| pin count | 24 |
| power supply type | Single |
| product: | RS-232 Transceivers |
| product category: | RS-232 Interface IC |
| product type: | RS-232 Interface IC |
| protocol | RS232, RS422 |
| protocol supported: | RS-232, RS-422 |
| reach status | REACH Unaffected |
| receiver hysteresis | 70mV |
| receiver signal type | Differential, Single Ended |
| receiver signal type: | Single-Ended, Differential |
| rohs status | ROHS3 Compliant |
| series: | AD7306 |
| shutdown: | Without Shutdown |
| subcategory: | Interface ICs |
| supplier device package | 24-SOIC |
| supply type: | Single Supply |
| supply voltage - max: | 5.25 V |
| supply voltage - min: | 4.75 V |
| transmitter signal type | Differential, Single Ended |
| type | Transceiver |
| typical single supply voltage | 5 V |
| вес, г | 01.01.2024 |
| voltage - supply | 4.75V ~ 5.25V |
| width | 7.6mm |
