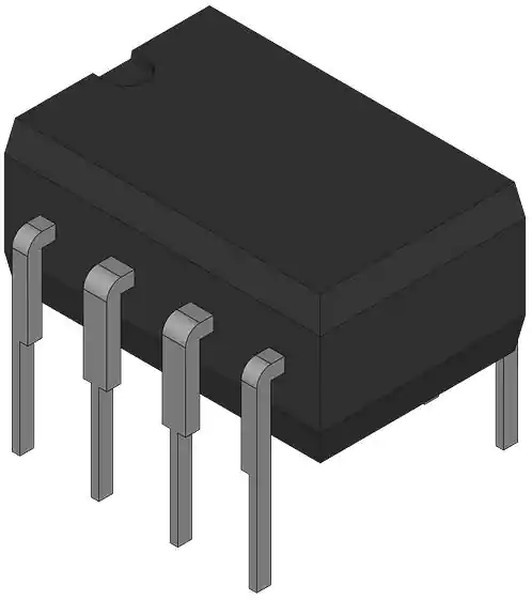

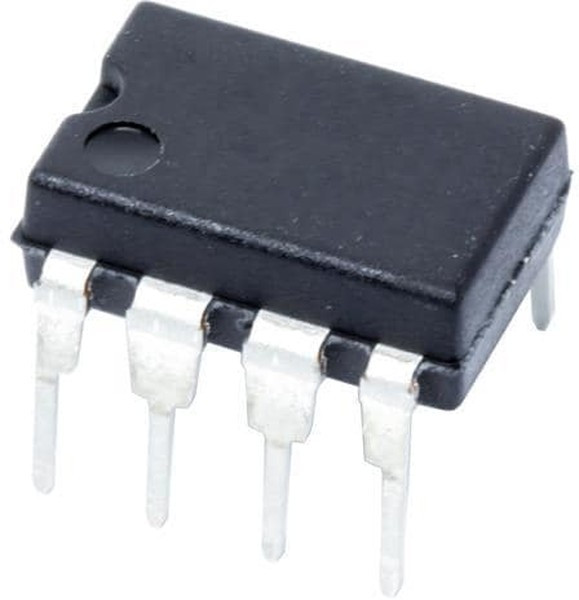

SN65HVD12P, Single Transmitter/Receiver RS-485 8-Pin PDIP Tube
Оставить отзыв
В избранноеВ сравнение
Артикул: SN65HVD12P
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Drivers and Interfaces\Interface\Bus Line TransceiversSingle Transmitter/Receiver RS-485 8-Pin PDIP Tube
| Информация о производителе | |
| Производитель | Texas Instruments |
| Страна производства | МАЛАЙЗИЯ |
| Основные | |
| Дата загрузки | 09.07.2023 |
| Время загрузки | 4:38:00 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| automotive | No |
| base product number | 65HVD12 -> |
| data rate | 1Mbps(Max) |
| data rate: | 1 Mb/s |
| data transmission topology | Multipoint |
| driving mode | 3-State |
| duplex | Half |
| duplex: | Half Duplex |
| eccn | EAR99 |
| eccn (us) | ear99 |
| esd protection: | 16 kV |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 150 |
| function | LINE TRANSCEIVER |
| function: | Transceiver |
| htsus | 8542.39.0001 |
| interface standards | EIA/TIA-485-A|ISO-8482:1993|RS-485 |
| isolation | No |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Through Hole |
| manufacturer: | Texas Instruments |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 03.06.2023 |
| maximum supply current (ma) | 15.05.2023 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 3 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of drivers: | 1 Driver |
| number of drivers per line | 1 |
| number of drivers/receivers | 01.01.2023 |
| number of receivers | 1 |
| number of receivers: | 1 Receiver |
| number of receivers per line | 1 |
| number of receiver enables | 1 |
| number of transceivers | 1 |
| number of transmitters | 1 |
| number of transmitter enables | 1 |
| operating supply current: | 15.5 mA |
| operating supply voltage: | 3.3 V |
| operating temperature | -40В°C ~ 85В°C |
| package | Tube |
| package / case | 8-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8021393080 |
| part status | LTB |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| product: | RS-485 Transceivers |
| product category: | RS-485 Interface IC |
| product type: | RS-485 Interface IC |
| protocol | RS422, RS485 |
| reach status | REACH Unaffected |
| receiver communication type | RS-485 |
| receiver hysteresis | 35mV |
| receiver signal type | Differential |
| rohs status | ROHS3 Compliant |
| series: | SN65HVD12 |
| shutdown: | Shutdown |
| standard package name | DIP |
| subcategory: | Interface ICs |
| supplier device package | 8-PDIP |
| supplier package | PDIP |
| supplier temperature grade | Industrial |
| supply voltage - max: | 3.6 V |
| supply voltage - min: | 3 V |
| transmitter communication type | RS-485 |
| transmitter signal type | Differential |
| type | Transceiver |
| typical single supply voltage (v) | 03.03.2023 |
| voltage - supply | 3V ~ 3.6V |
