UCC27423D
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты

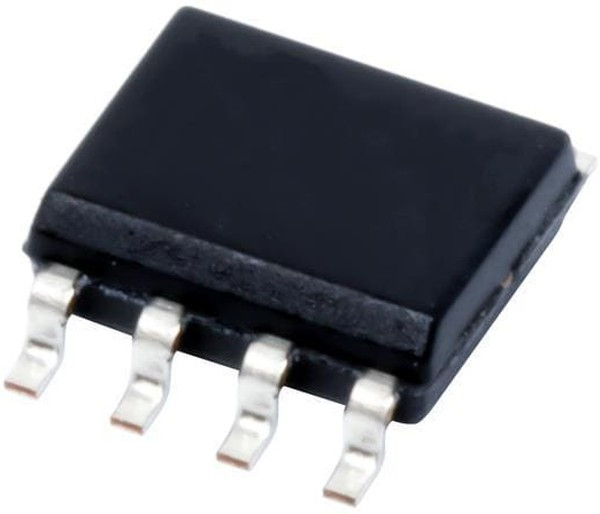

Электроэлемент4-A/4-A dual-channel gate driver with 5-V UVLO, enable, and inverting inputs 8-SOIC -40 to 105
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 29.04.2024 |
| Время загрузки | 5:33:19 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| automotive | No |
| base product number | UCC27423 -> |
| channel type | Independent |
| configuration | Inverting |
| configuration: | Inverting |
| current - peak output (source, sink) | 4A, 4A |
| driven configuration | Low-Side |
| driver configuration | Inverting |
| driver type | Low Side |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 75 |
| fall time | 15 ns |
| fall time: | 15 ns |
| features: | Enable Pin |
| gate type | N-Channel, P-Channel MOSFET |
| htsus | 8542.39.0001 |
| input logic compatibility | CMOS|TTL |
| input type | Inverting |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| logic type | CMOS |
| logic type: | CMOS |
| logic voltage - vil, vih | 1V, 2V |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum fall time (ns) | 40 |
| maximum operating supply voltage (v) | 15 |
| maximum operating temperature | +105 C |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum power dissipation (mw) | 650 |
| maximum propagation delay time (ns) | 150 |
| maximum rise time (ns) | 40 |
| maximum supply current (ma) | 1.35 |
| minimum operating supply voltage (v) | 4 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of drivers | 2 Driver |
| number of drivers: | 2 Driver |
| number of outputs | 2 |
| number of outputs: | 2 Output |
| operating supply current | 1.35 mA |
| operating supply current: | 1.35 mA |
| operating supply voltage | 4 V to 15 V |
| operating supply voltage: | 4 V to 15 V |
| operating temperature | -40В°C ~ 125В°C (TA) |
| operating temperature range | -40 C to+105 C |
| output current | 4 A |
| output current: | 4 A |
| output resistance (ohm) | 2.2|30 |
| package | Tube |
| package / case | SOIC-8 |
| package / case: | SOIC-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8002951883 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation | 650 mW |
| pd - power dissipation: | 650 mW |
| peak output current (a) | 4(Typ) |
| pin count | 8 |
| ppap | No |
| process technology | CMOS|Bipolar |
| product | Driver ICs-Various |
| product: | MOSFET Gate Drivers |
| product category | Gate Drivers |
| product category: | Gate Drivers |
| product type: | Gate Drivers |
| reach status | REACH Unaffected |
| rise / fall time (typ) | 20ns, 15ns |
| rise time | 20 ns |
| rise time: | 20 ns |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | UCC27423 |
| series: | UCC27423 |
| special features | Enable Control |
| standard package name | SO |
| subcategory: | PMIC-Power Management ICs |
| supplier device package | 8-SOIC |
| supplier package | SOIC |
| supply voltage - max | 15 V |
| supply voltage - max: | 15 V |
| supply voltage - min | 4 V |
| supply voltage - min: | 4 V |
| technology: | Si |
| type | Low Side |
| type: | Low-Side |
| unit weight | 0.002561 oz |
| вес, г | 0.181 |
| voltage - supply | 4V ~ 15V |
