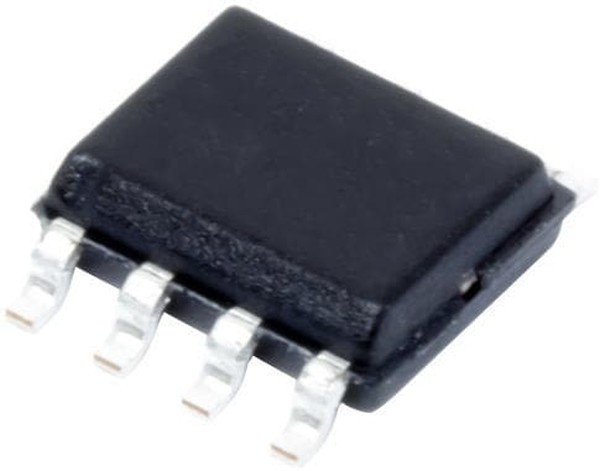

Name: UCC27201ADDA
Brand: Texas Instruments

Электронные компоненты Микросхемы Драйверы MOSFET и IGBT Texas Instruments UCC27201ADDA

Подробное описание

Информация о производителе
Производитель	Texas Instruments
Основные
Дата загрузки	29.04.2024
Время загрузки	6:12:17
Бренд	Texas Instruments

Все характеристики

660 ₽

– +

Бонус: 13.2 !

Бонусная программа

Итого: 660 ₽

Купить

Обзор
Характеристики
Отзывы (0)
Реквизиты

ЭлектроэлементDVR HIGH/LOW SIDE, 3A, 8SOIC; Driver Configuration:Non-Inverting; Peak Output Current:3A; Supply Voltage Min:8V; Supply Voltage Max:17V; Driver Case Style:SOIC; No. of Pins:8Pins; Input Delay:20ns; Output Delay:20ns; Operating Temperature Min:-40°C; Operating Temperature Max:140°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:27201; Device Type:MOSFET; No. of Outputs:2Outputs; Operating Temperature Range:-40°C to +140°C; Output Current:3A; Primary Input Voltage:12V

Информация о производителе
Производитель	Texas Instruments
Основные
Дата загрузки	29.04.2024
Время загрузки	6:12:17
Бренд	Texas Instruments
Вес и габариты
automotive	No
bridge type	Full Bridge\|Half Bridge
configuration	Non-Inverting
driver configuration	Non-Inverting
driver type	High and Low Side
eccn (us)	EAR99
factory pack quantity: factory pack quantity:	300
fall time	7 ns
fall time:	7 ns
features:	Negative Voltage Handling
Высота	1.55 мм
high and low sides dependency	Independent
input logic compatibility	TTL
категория	Электронные компоненты/Микросхемы
latch-up proof	No
lead shape	Gull-wing
manufacturer	Texas Instruments
manufacturer:	Texas Instruments
maximum fall time (ns)	7(Typ)
maximum operating frequency (khz)	1000(Min)
maximum operating supply voltage (v)	17
maximum operating temperature	+140 C
maximum operating temperature:	+140 C
maximum operating temperature (°c)	140
maximum power dissipation (mw)	2700
maximum propagation delay time (ns)	50
maximum rise time (ns)	8(Typ)
maximum supply current (ma)	05.05.2024
maximum turn-off delay time (ns)	7
maximum turn-on delay time (ns)	7
minimum operating supply voltage (v)	8
minimum operating temperature	-40 C
minimum operating temperature:	-40 C
minimum operating temperature (°c)	-40
mounting	Surface Mount
mounting style	SMD/SMT
mounting style:	SMD/SMT
mounting type	Surface Mount
number of drivers	2 Driver
number of drivers:	2 Driver
number of outputs	2
number of outputs:	2 Output
operating supply current	3.8 mA
operating supply current:	3.8 mA
operating supply voltage	8 V to 20 V
operating supply voltage:	8 V to 20 V
operating temperature range	-40 C to+140 C
output current	3 A
output current:	3 A
output voltage	0.25 V
output voltage:	0.25 V
package / case	HSOP-8
package / case:	SO-PowerPad-8
package type	SO PowerPAD
packaging	Reel
packaging:	Tube
партномер	8002953248
part status	LTB
pcb changed	8
pd - power dissipation	2.7 W
pd - power dissipation:	2.7 W
peak output current (a)	3(Typ)
pin count	8
polarity	Non-Inverting
ppap	No
product	MOSFET Gate Drivers
product:	MOSFET Gate Drivers
product category	Gate Drivers
product category:	Gate Drivers
product type:	Gate Drivers
rise time	8 ns
rise time:	8 ns
rohs	Details
series	UCC27201A
series:	UCC27201A
special features	Under Voltage Lockout
standard package name	SO
subcategory:	PMIC-Power Management ICs
supplier package	HSOIC EP
supply voltage	17V
supply voltage - max	20 V
supply voltage - max:	17 V
supply voltage - min	8 V
supply voltage - min:	8 V
technology:	Si
topology	Half Bridge
type	High and Low Side Driver
type:	High-Side, Low-Side
typical input high threshold voltage (v)	01.07.2024
typical input low threshold voltage (v)	01.06.2024
typical operating supply voltage (v)	12
unit weight	0.00249 oz
вес, г	0.1
