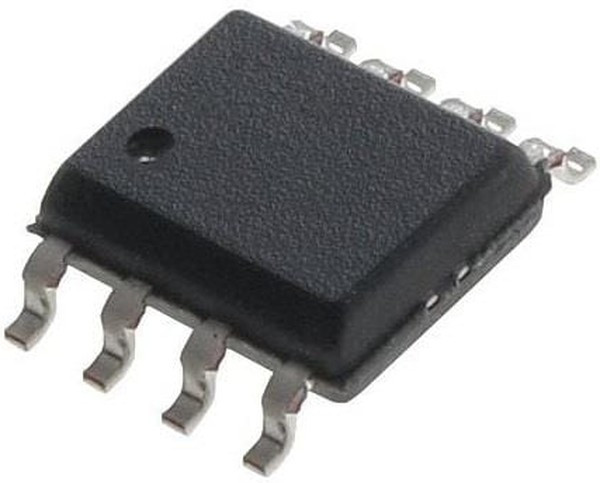

MCP14A0901-E/SN, MOSFET Driver, Low Side, 4.5V to 18V Supply, 9A Out, 24ns Delay, NSOIC-8

Полупроводники - Микросхемы\Микросхемы Управления Питанием\Драйверы ЗатворовThe MCP14A0901/2 devices are high-speed MOSFET drivers that are capable of providing up to 9.0A of peak current while operating from a single 4.5V to 18V supply. These devices feature low shootthrough current, fast rise and fall times, and matched propagation delays which make them ideal for high switching frequency applications. • High Peak Output Current: 9.0A (typical)• Wide Input Supply Voltage Operating Range: - 4.5V to 18V• Low Shoot-Through/Cross-Conduction Current in Output Stage• High Capacitive Load Drive Capability: - 10.000 pF in 24 ns (typical)• Short Delay Times: 27 ns (tD1), 27 ns (tD2) (typical)• Low Supply Current: 360 µA (typical)• Low-Voltage Threshold Input and Enable with Hysteresis• Latch-Up Protected: Withstands 500 mA Reverse Current
