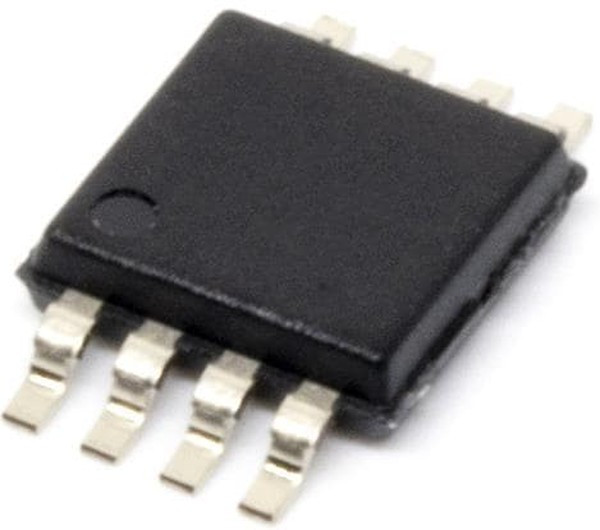

MAX5075AAUA+, Драйвер МОП-транзистора, 4.5В-15В питание, 3А на выходе, µMAX-8

Полупроводники - Микросхемы\Микросхемы Управления Питанием\Драйверы ЗатворовThe MAX5075AAUA+ is a push-pull FET driver with integrated oscillator and clock output in 8 pin µMAX package. This 4.5V to 15V push-pull, current fed topology driver subsystem with an integrated oscillator for use in telecom module power supplies. The device drives two MOSFETs connected to a centre tapped transformer primary providing secondary side, isolated negative or positive voltages. It has programmable and accurate integrated oscillator with synchronizing clock output that synchronizes an external PWM regulator. A single external resistor programs internal oscillator frequency from 50KHz to 1.5MHz. The MAX5075 incorporates a dual MOSFET driver with ±3A peak drive currents and 50% duty cycle. The MOSFET driver generates complementary signals to drive external ground referenced N-channel MOSFETs. The device is used in current fed, high efficiency power supply modules, power supply building and push-pull driver subsystems. • Supply voltage range from 4.5V to 15V• Operating temperature range from -40°C to 125°C• Ratio of fCLK/fNDRV is 1• 1mA operating current at 250KHz with no capacitive load• Synchronizing clock frequency generation options• Oscillator accuracy of 10% at fOSC = 250KHz, 6V <= VCC <= 15V• Rise time of 10ns and fall time of 10ns at CLOAD = 2nF• Available with clock output frequency to MOSFET driver frequency ratio of 1x, 2x and 4x
