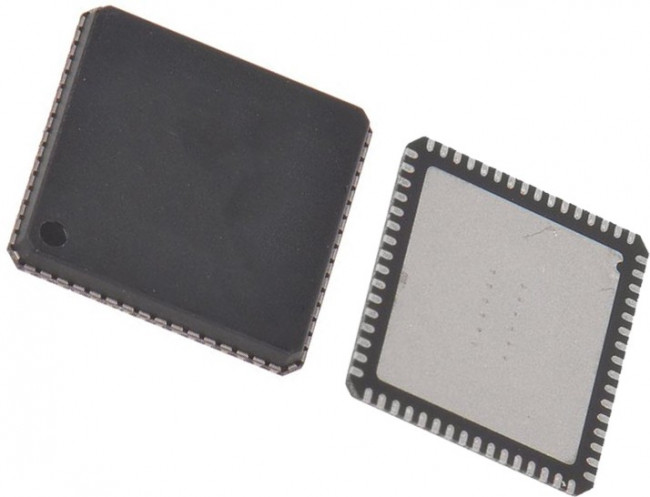

RAJ306010GNP#AAN, Motor Driver, Three Phase DC Brushless, 0.5 A, 6 V to 42 V, HTQFN-64, -40 °C to 85 °C

Полупроводники - Микросхемы\Микросхемы Управления Питанием\Драйверы и Контроллеры\Контроллеры / Приводы ДвигателейWith the launch of RAJ306010 integrated IC, Renesas provide easy, efficient and safe brushless DC (BLDC) motor control for battery-operated power tools, drones, robots, fans, water pumps and other systems. The single chip system in package (SiP) integrates MCU and pre-driver for a sensorless solution that saves board space and lowers system costs while enabling levels of low-speed rotation and high torque control that competitive solutions cannot achieve. Single package motor control IC integrates RL78/G1F MCU and pre-driver reducing system size and external components to reduce overall cost with an 8x8 mm all-in-one package. With more efficient MOSFET switching, motor drive efficiency is improved by 35% and better thermal performance eliminates need for a heat sink. This control IC for brushless motors which are growing in industrial and home markets. Typically used in power tools, garden tools, vacuum cleaners, printers, fans, pumps and robotics. • Operating power supply voltage from 6V to 42V• Operating ambient temperature range from -40 to +85°C• Low VM supply current• GPIO: 28ch, port for input: 2ch• With more efficient MOSFET switching, motor drive efficiency is improved by 35%• 16bit CISC CPU (RL78/G1F) CPU• Three half-bridge gate drivers for six N-MOSFET• Selectable single/double boost charge pump for gate drive voltage (10, 13V)• 10bit resolution A/D converter (9ch), timer• MCU supports H/W of the safe standard of IEC60730
