MP6610GJ-P, Motor / Motion / Ignition Controllers & Drivers 55V 3A Half-Bridge Power Driver,TSOT23-8 Package

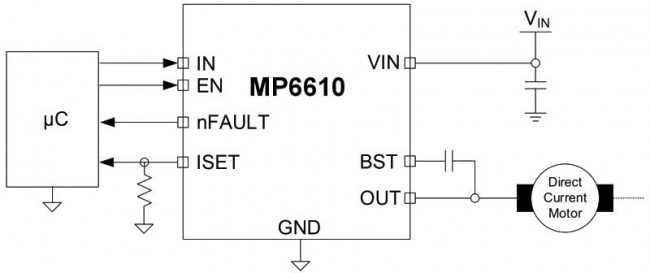

MP6610 is a half-bridge driver with current measurement and regulation features. It can deliver up to 3A of output current across a wide 4V to 55V input voltage range. The MP6610 is designed to drive brushed DC motors, solenoids, relay and other loads. An internal current-sense circuit provides an output voltage that is proportional to the load current. The MP6610 also features cycle-by-cycle current limiting and regulation. These features do not require the use of a low-ohmic shunt resistor. Internal diagnostic and protection features include open-load detection (OLD), overcurrent protection (OCP), undervoltage lockout (UVLO) and thermal shutdown. It is available in 8-pin TSOT23-8 package. Due to the small pin spacing, the TSOT23-8 package is only recommended for applications up to 45V, unless conformal coating or encapsulation is used. • Internal half-bridge driver• Low on resistance: 100mohm high-side MOSFET (HS-FET), 120mohm low-side MOSFET (LS-FET)• No control power supply required• Simple, versatile logic interfaces• Inputs compatible with 2.5V, 3.3V and 5V logic• Fault indication output• Thermally enhanced package
