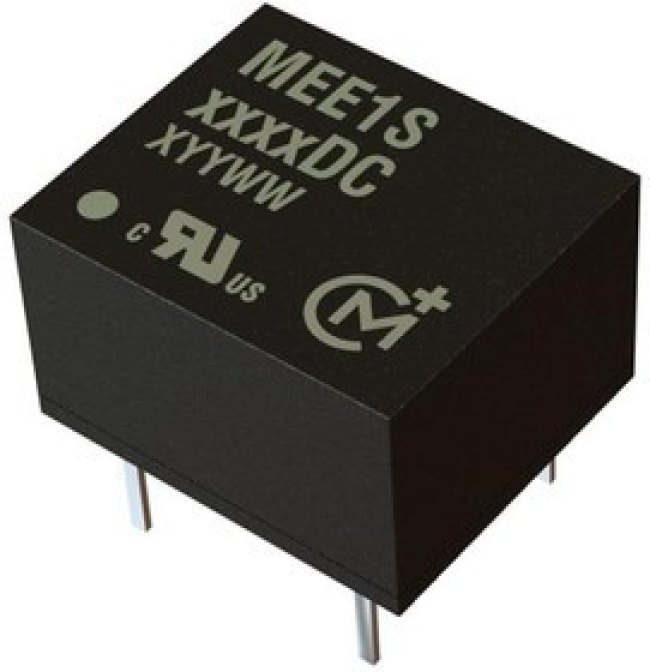

Name: MEE1S0505DC, Isolated DC/DC Converters 1W 5-5V DIP8 1KVDC DC/DC
SKU: MEE1S0505DC

MEE1S0505DC, Isolated DC/DC Converters 1W 5-5V DIP8 1KVDC DC/DC

Подробное описание

Основные
вес, г	1.56
line regulation	1.1%/%
load regulation	7%
number of outputs	1

Все характеристики

1 430 ₽

- +

Бонус: 28.6 !

Бонусная программа

Итого: 1 430 ₽

Купить

Обзор
Характеристики
Отзывы (0)
Реквизиты

Power\DC/DC Converters\Isolated DC/DC ConvertersMEE1 Isolated 1W Single-Output DC/DC ConvertersMurata Power Solutions MEE1 Isolated 1W Single-Output DC/DC Converters are PCB mounted modules designed for applications requiring isolated low-power distributed supply. The input voltage range is 3.3V DC to 24V DC with an output voltage range of 3.3V DC to 15V DC. Typical efficiency is 76% to 87%. MEE1 is available with PCB mounting in industry-standard SIP 4-pin and DIP 8-pin pinout formats.

Основные
вес, г	1.56
line regulation	1.1%/%
load regulation	7%
number of outputs	1
pin count	4
isolation	Isolated
automotive	No
eu rohs	Compliant with Exemption
lead shape	Through Hole
maximum operating temperature (°c)	85
mounting	Through Hole
part status	NRND
pcb changed	4
ppap	No
standard package name	DIP
supplier package	DIP
switching frequency (khz)	60(Typ)
eccn (us)	ear99
minimum operating temperature (°c)	-40
output type	Fixed
factory pack quantity: factory pack quantity:	35
input voltage, max:	5.5 V
input voltage, min:	4.5 V
input voltage:	4.5 V to 5.5 V
isolation voltage:	1 kV
manufacturer:	Murata
maximum operating temperature:	+85 C
minimum operating temperature:	-40 C
mounting style:	Through Hole
number of outputs:	1 Output
output current-channel 1:	200 mA
output power:	1 W
output voltage-channel 1:	5 V
product category:	Isolated DC/DC Converters
product type:	Isolated DC-DC Converters
product:	Isolated
series:	MEE1
subcategory:	DC-DC Converter
packaging:	Tube
output voltage (v)	5
minimum input voltage (v)	4.5
maximum input voltage (v)	5.5
Вес и габариты
package/case:	DIP-8
switching regulator	Yes
efficiency (%)	83(Typ)
application:	Industrial
minimum isolation voltage	1000VDC
output current (a)	0.2
output power (w)	1
typical input voltage (v)	5
