Clock and Timing\Clock Distribution\Clock Generators and SynthesizersТактовый генератор от 0 до 250 МГц-IN 2950MHz-OUT 64-контактный лоток LFCSP EP

Подробное описание

2 700 ₽

– +

Бонус: 54 !

Бонусная программа

Итого: 2 700 ₽

Купить

Clock and Timing\Clock Distribution\Clock Generators and SynthesizersТактовый генератор от 0 до 250 МГц-IN 2950MHz-OUT 64-контактный лоток LFCSP EP

Вес и габариты
base product number	AD9516 ->
clock input frequency (mhz)	0 to 250
differential - input:output	Yes/Yes
divider/multiplier	Yes/No
eccn	EAR99
eccn (us)	ear99
eu rohs	compliant
frequency - max	2.4GHz
htsus	8542.39.0001
input	CMOS, LVDS, LVPECL
lead shape	no lead
maximum operating supply voltage (v)	3.465
maximum operating temperature (°c)	85
maximum output frequency (mhz)	2950(Min)
minimum operating supply voltage (v)	3.135
minimum operating temperature (°c)	-40
moisture sensitivity level (msl)	3 (168 Hours)
mounting	surface mount
mounting type	Surface Mount
number of circuits	1
number of outputs per chip	14
operating temperature	-40В°C ~ 85В°C
output	CMOS, LVDS, LVPECL
package	Tray
package / case	64-VFQFN Exposed Pad, CSP
packaging	Tray
part status	active
pcb changed	64
pin count	64
pll	Yes
ratio - input:output	1:14
reach status	REACH Unaffected
rohs status	ROHS3 Compliant
standard package name	CSP
supplier device package	64-LFCSP-VQ (9x9)
supplier package	LFCSP EP
type	Clock Generator, Fanout Distribution
typical operating supply voltage (v)	3.3
video file	PLL Frequency Planning for Spurious Signal Elimina
voltage - supply	3.135V ~ 3.465V

0.0

общая оценка

Всего 0 отзывов

0 отзывов

Отзывов нет

Кнопки

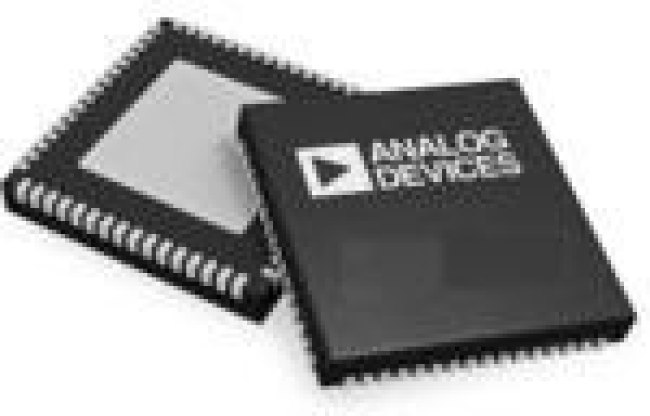

AD9516-5BCPZ, Clock Generator 0MHz to 2.4GHz-IN 2950MHz-OUT 64-Pin LFCSP EP Tray
